Elite MFMC 30000
A 30kW multi-module, cabinet-mounted fiber laser delivering ≥5% built-in power redundancy for cutting, welding, and cladding.

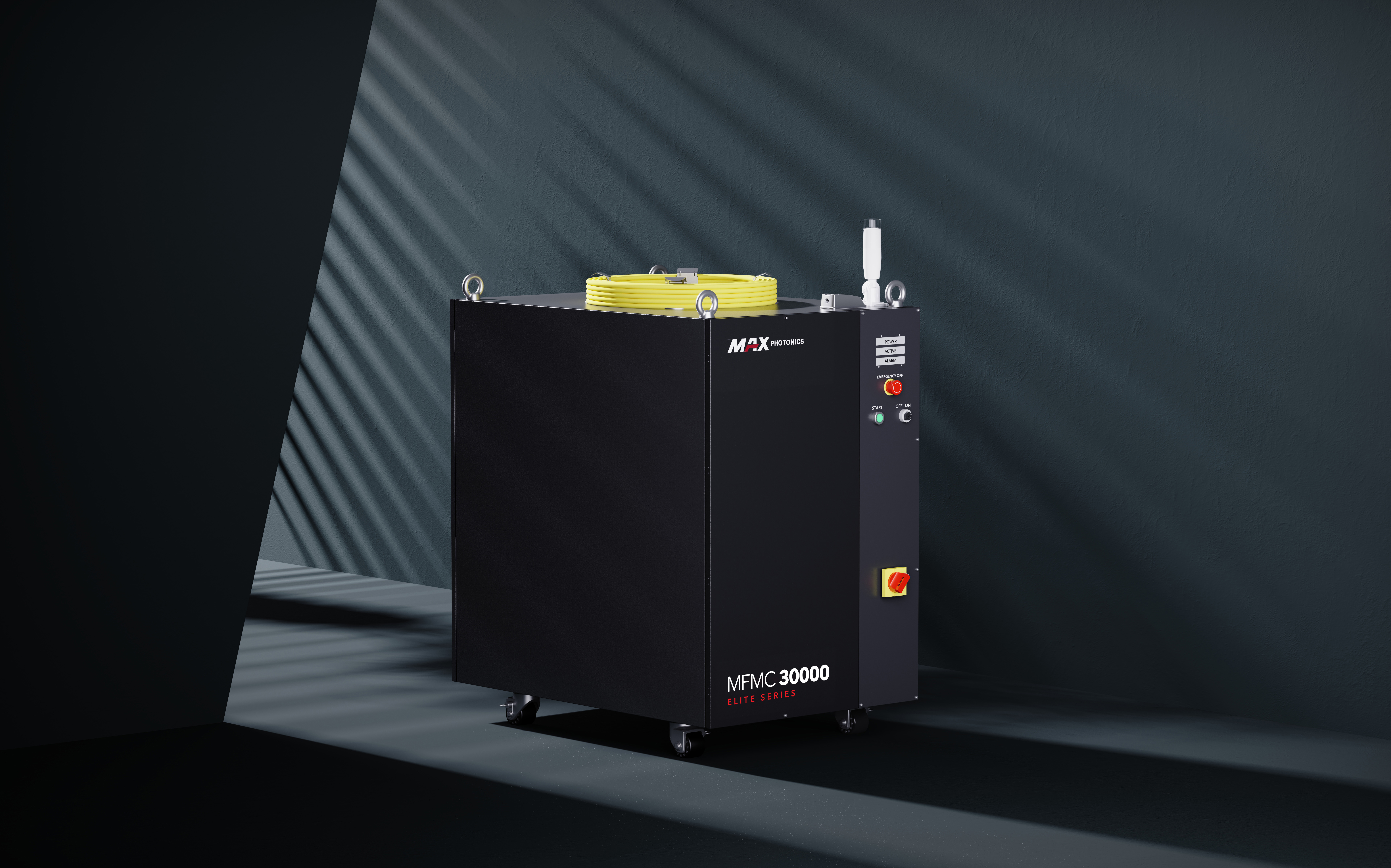

Elite MFMC 30000 Industrial Fiber Laser
The MFMC 30000 steps up to 30kW within the same multi-module cabinet architecture and beam quality range (BPP 3.2–4.0 mm·mrad @100μm) as the MFMC 20000, in a chassis built to house the extra module capacity — at roughly 590kg against the MFMC 20000's 478kg, for higher-throughput cutting, welding, and cladding work.
Like the MFMC 20000, power stability holds within ±1% over an hour of continuous running, with the same 10–100% power tunability and up to 5kHz modulation frequency. It connects over digital I/O, with EtherCAT and PROFINET available, and ships CE, FDA, and ETL certified, with safety systems rated to Performance Level D (PL-d) and a 3-year standard warranty, extendable to 5 years.
Key Features
The same BPP 3.2–4.0 mm·mrad (@100μm) beam quality as the MFMC 20000 carries through to 30kW, keeping output consistent as module count increases.
≥5% of rated power held in reserve across the module array means the MFMC 30000 keeps running at full output even if one module underperforms.
10–100% power tunability and modulation up to 5kHz give the MFMC 30000 the same controlled-output flexibility as the MFMC 20000.
Digital I/O, with EtherCAT and PROFINET available, integrates the MFMC 30000 into existing cutting, welding, and cladding lines without custom middleware.
The same multi-module cabinet design as the MFMC 20000 combines additional laser modules into one enclosure to reach 30kW.
At roughly 590kg — 112kg heavier than the MFMC 20000 — the MFMC 30000's chassis is built to house the additional module capacity.

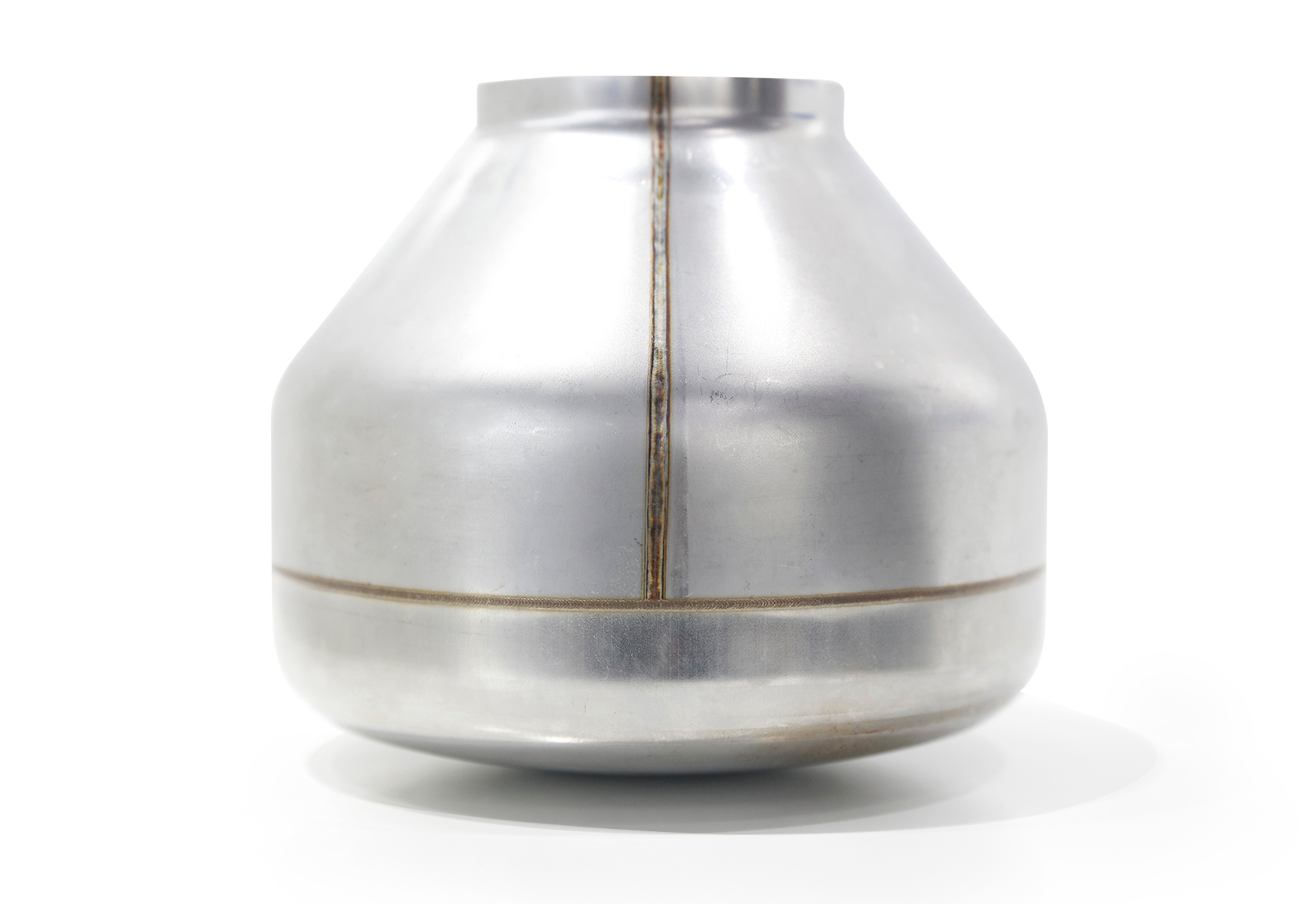

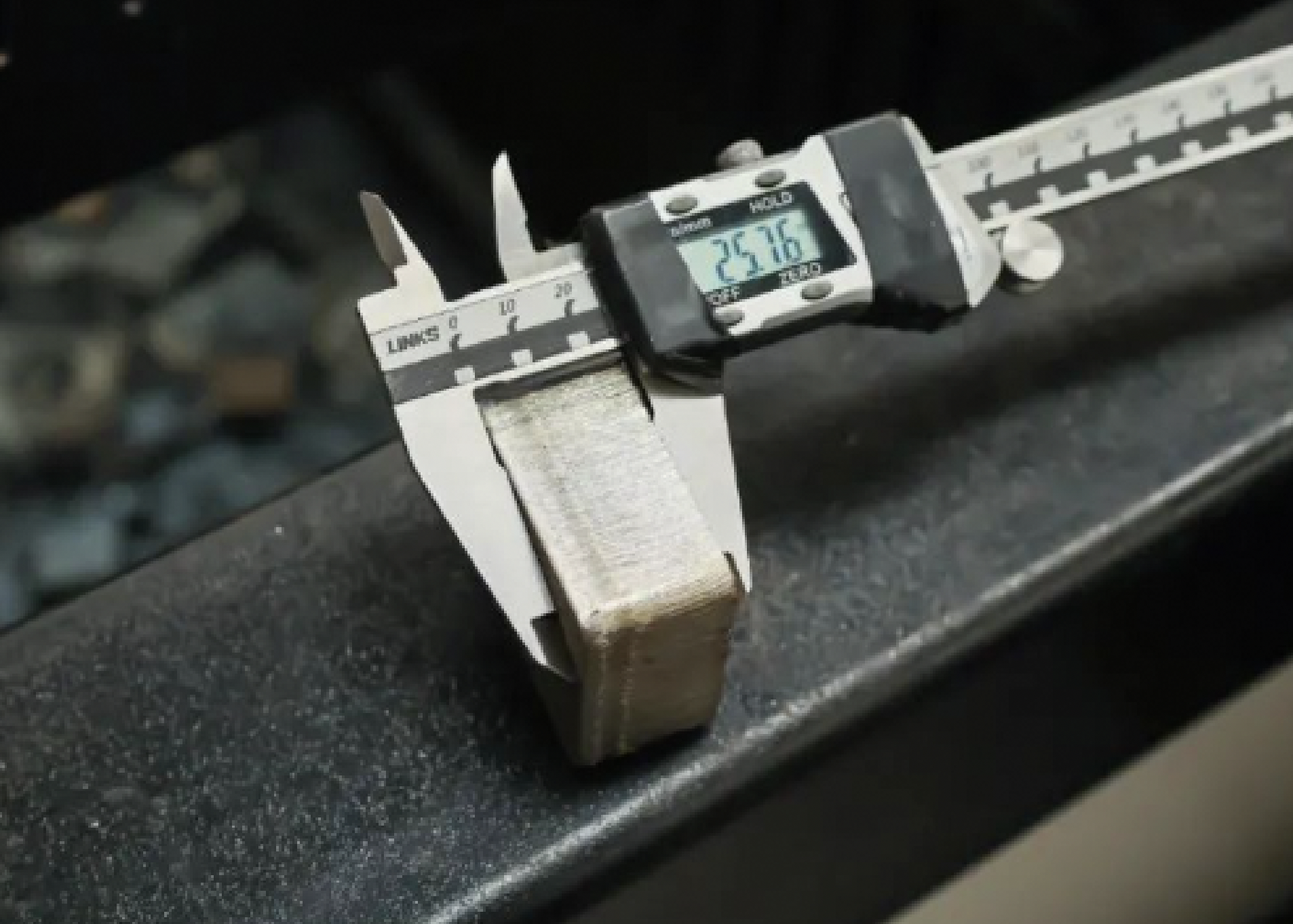

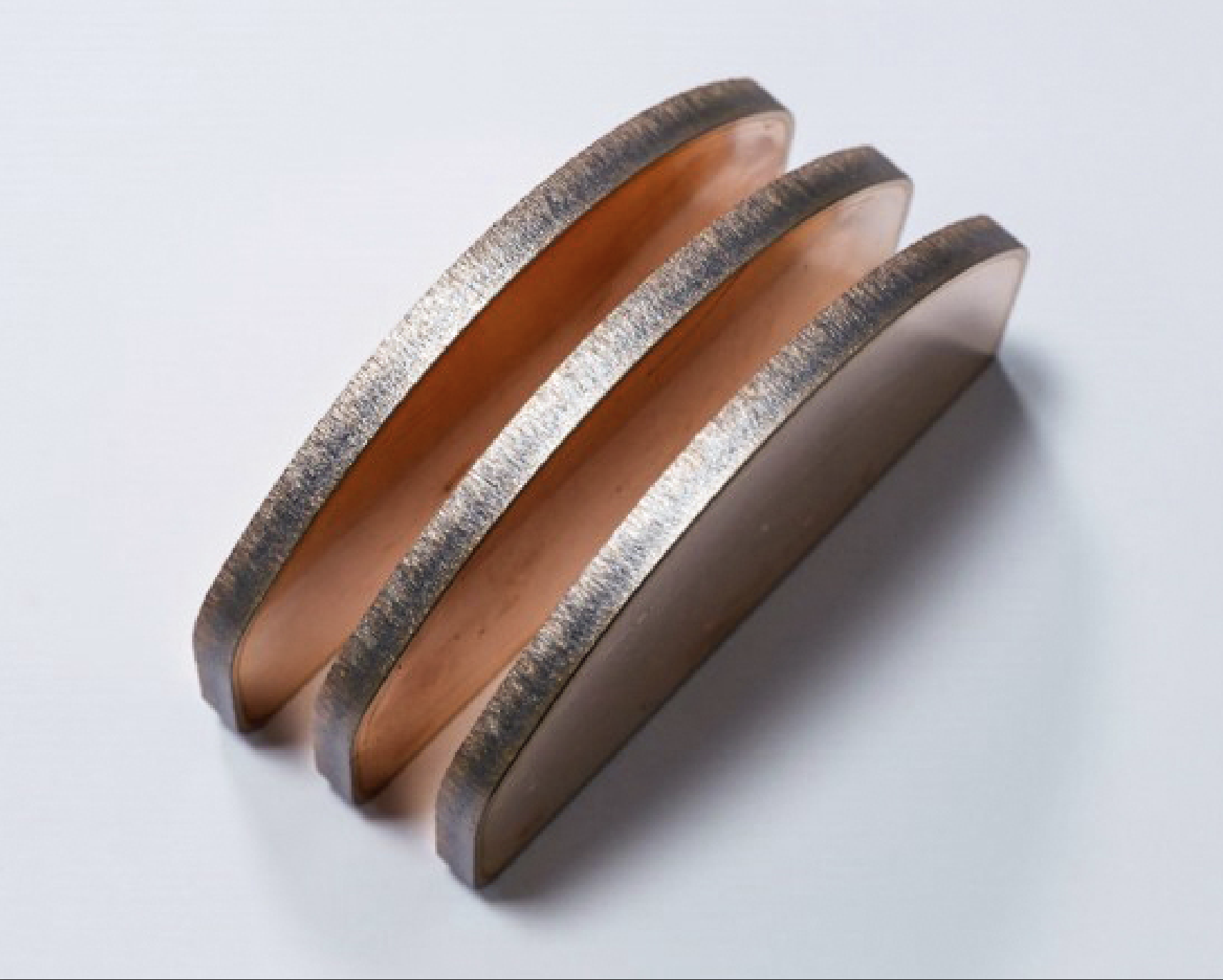

Application Examples
Product Comparison
Select products from the dropdown options below to compare parameters and find your perfect laser.
| Product type | |
| Series | |
| Nominal power | |
| Module | |
| Polarization | |
| Power Redundancy | |
| Power Tunability | |
| Wavelength | |
| Power Stability | |
| Modulation Frequency | |
| Pulse Energy (mJ) | |
| Repetition Rate (kHz) | |
| Fiber Connectors | |
| Certifications and Safety | |
| Cooling Method | |
| Housing form | |
| Warranty | |
Browse our Series
