Elite MFSC 500
A 19-inch rack-mount 500W fiber laser built for precision 3D printing, with M² ≤1.1 beam quality and ±1% power stability.

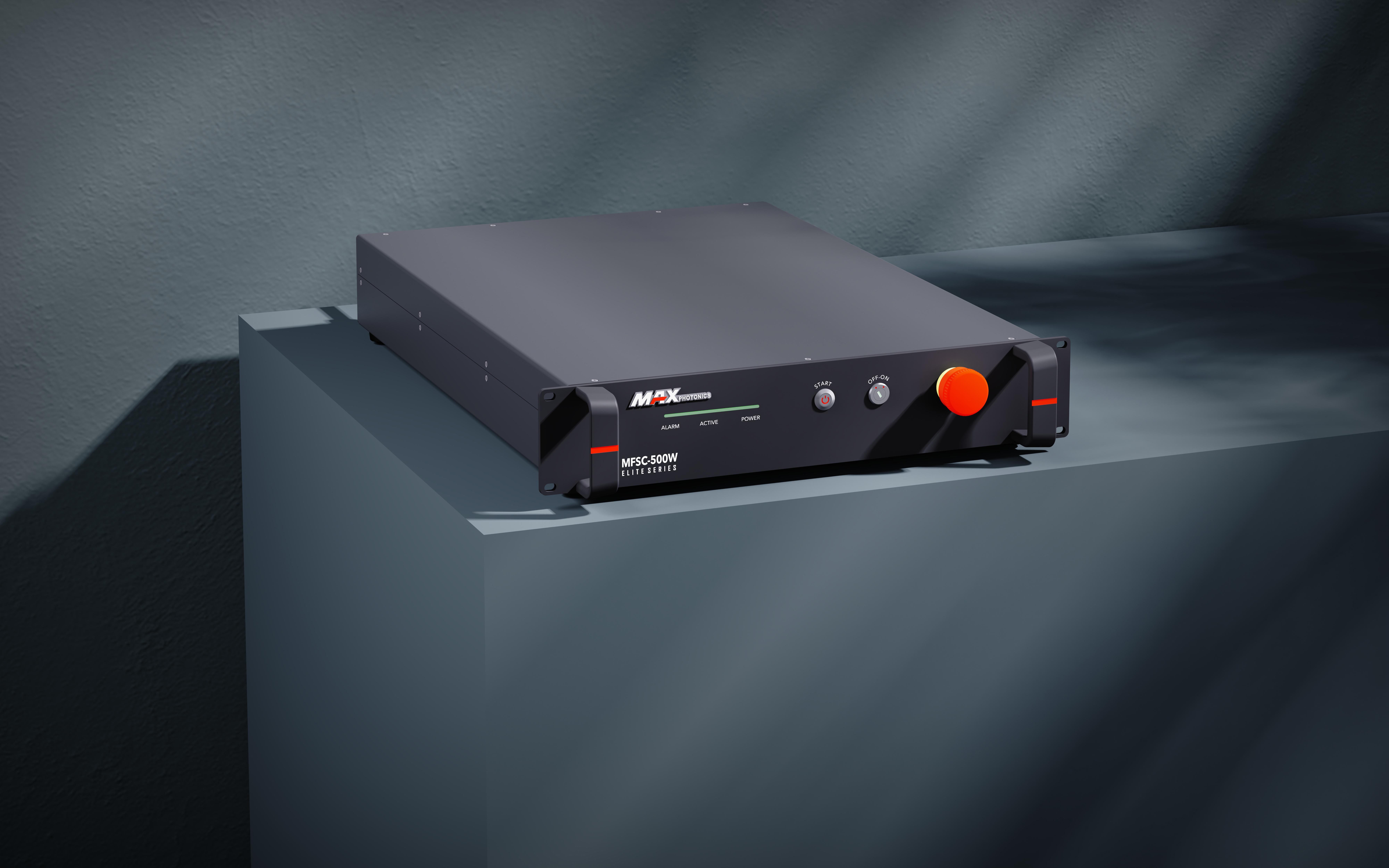

Elite MFSC 500 Industrial Fiber Laser
At 500W, the MFSC 500 is the entry point into the Elite Series' 3D printing pair, pairing a tight M² ≤1.1 beam quality (at a 10μm core) with ±1% power stability over an hour of continuous running — the consistency 3D printing needs from the first layer to the last.
The MFSC 500 fits a standard 19-inch rack at just 89mm tall (482.6 × 620 × 89mm) and 45kg, drawing 1.5kW typical input power on a single-phase 220V supply — a straightforward addition to an existing equipment rack rather than a dedicated floor footprint. It connects over Digital I/O, with EtherCAT and PROFINET available as options, and ships CE, FDA, and ETL (UL compatible) certified, with safety systems rated to Performance Level D and a 2-year standard warranty extendable to 5 years.
Key Features
M² ≤1.1 at a 10μm core delivers a tight, stable beam for fine-detail parts, layer after layer.
Power output holds within ±1% over an hour of continuous running, keeping layer-to-layer consistency steady across a full build.
At 482.6 × 620 × 89mm and 45kg, it fits a standard 19-inch rack rather than needing its own floor space — a straightforward addition to an existing equipment rack.
Modulation frequencies up to 50kHz give precise control over pulse timing for dynamic 3D printing processes.
Digital I/O comes standard, with EtherCAT and PROFINET available as options for direct integration into automated production lines.
QBH and QCS fiber connections support a range of compatible processing heads without needing a custom adapter.

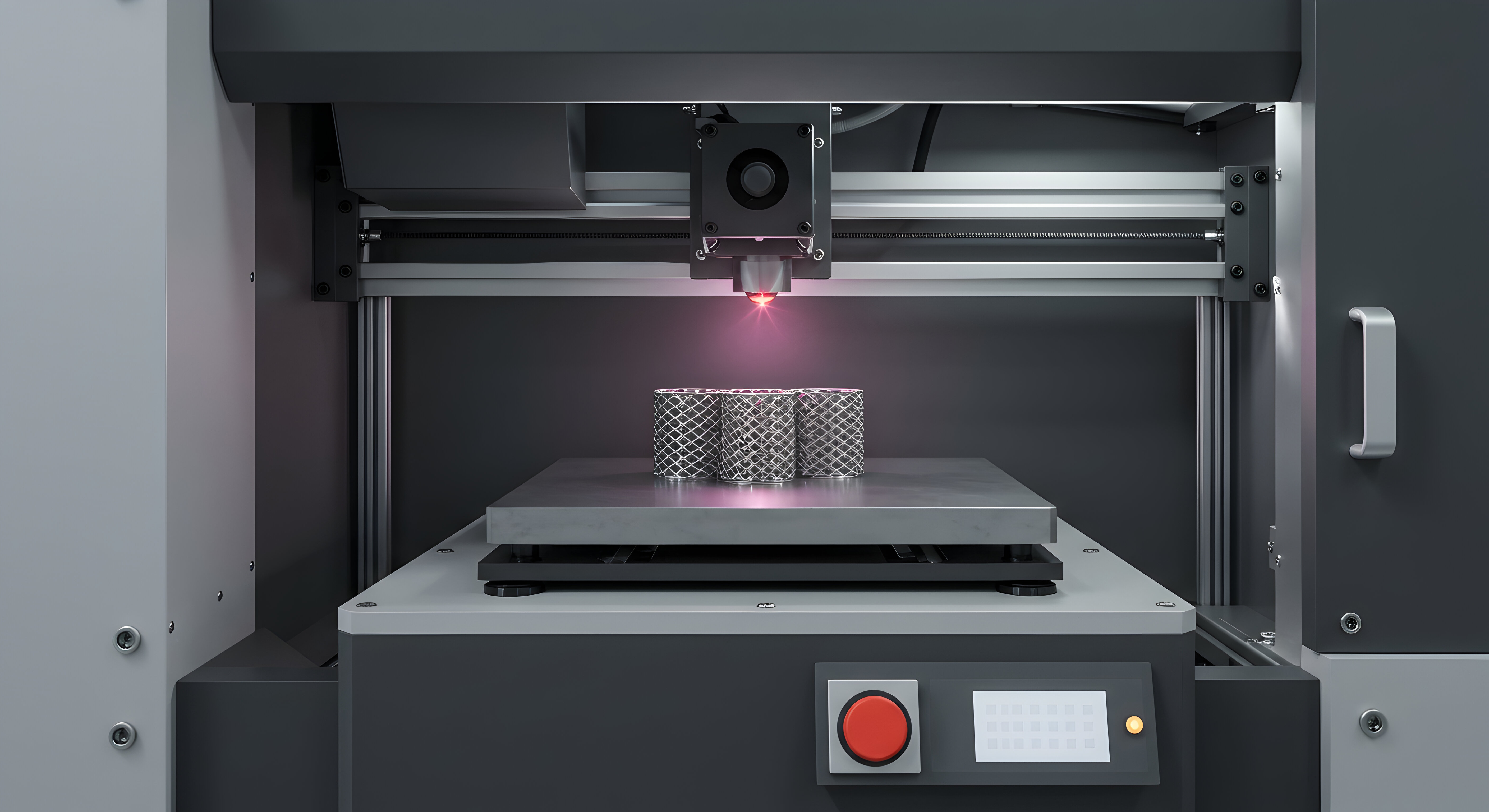

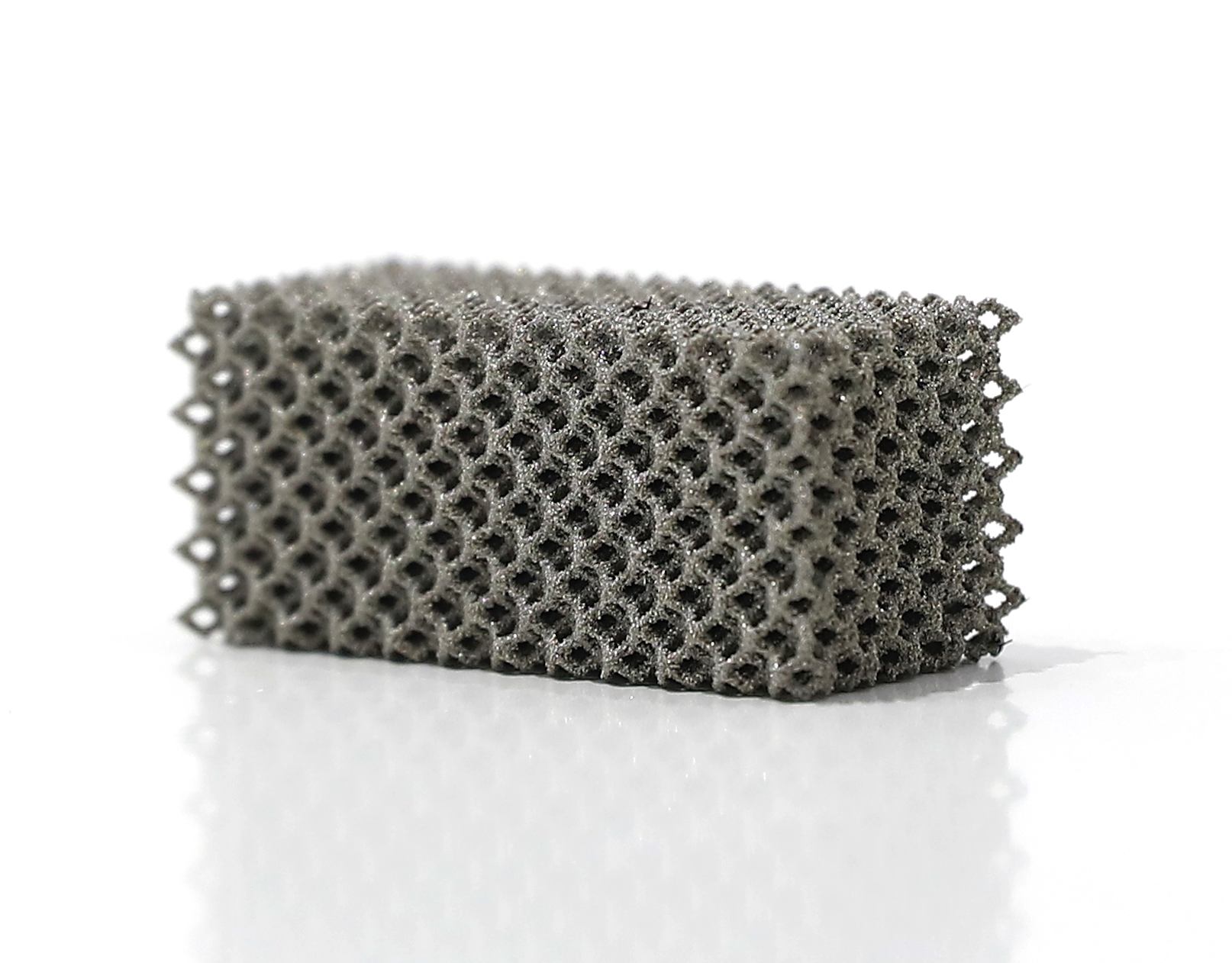

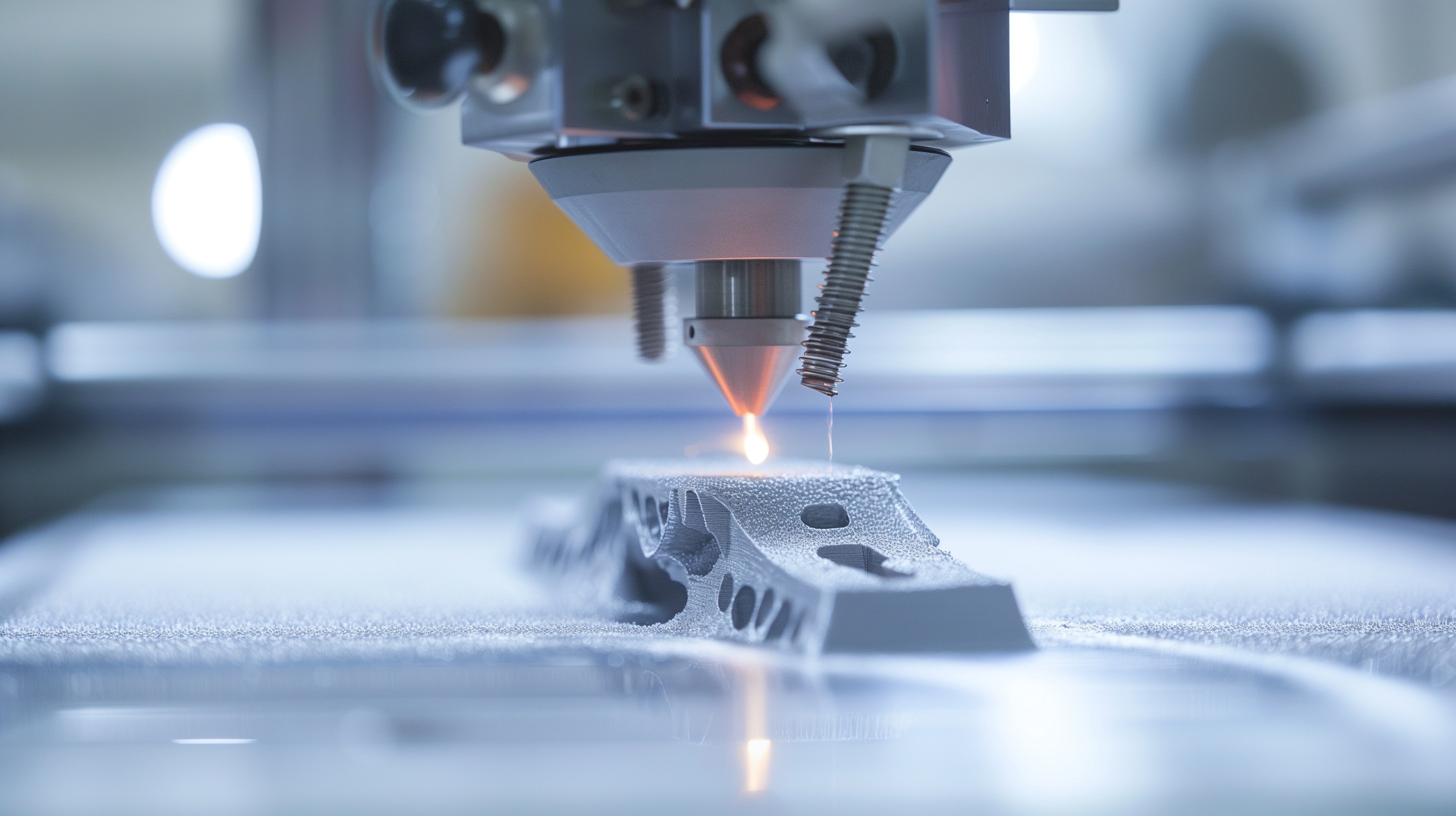

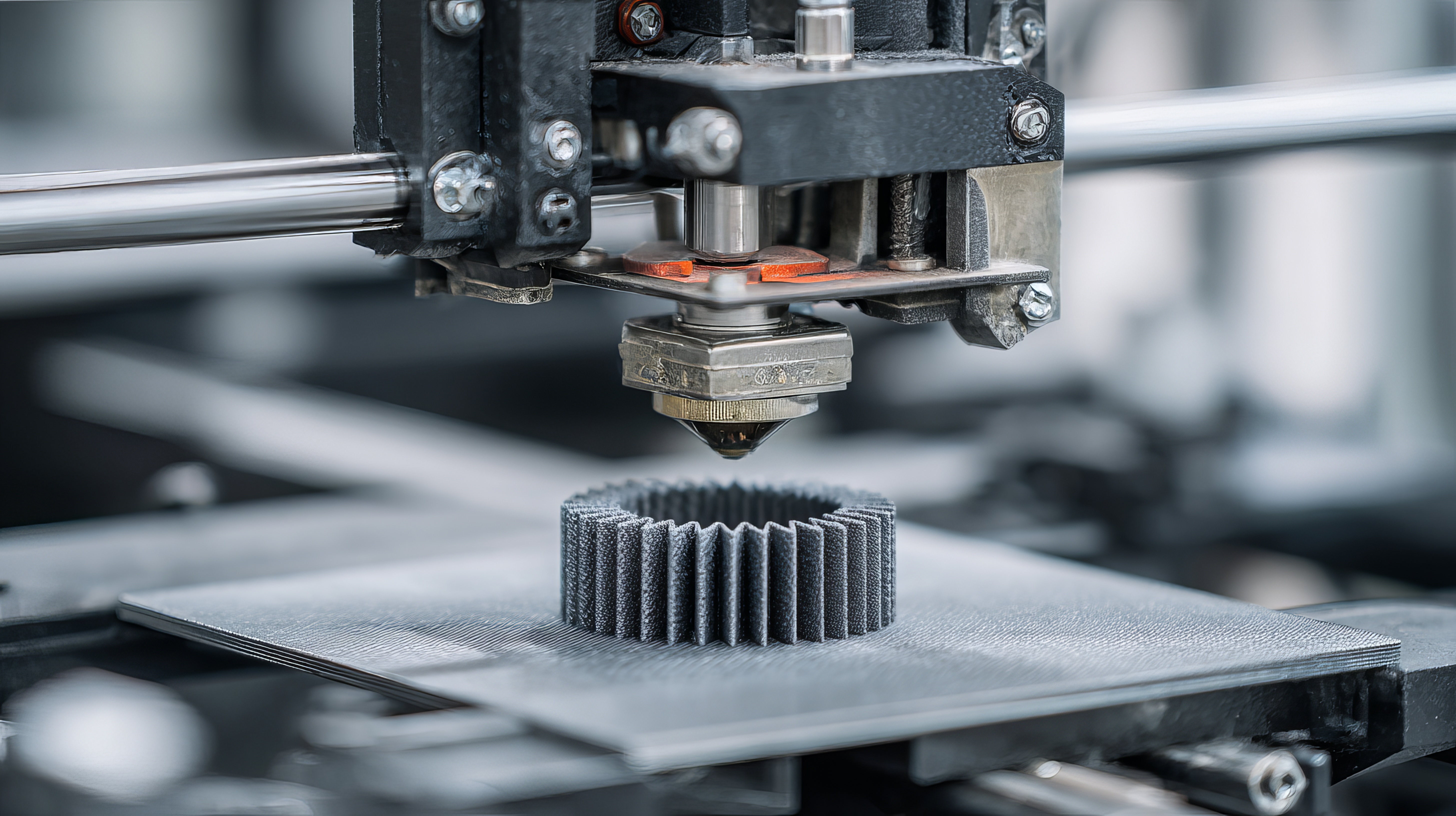

Application Examples
Product Comparison
Select products from the dropdown options below to compare parameters and find your perfect laser.
| Product type | |
| Series | |
| Nominal power | |
| Module | |
| Polarization | |
| Power Redundancy | |
| Power Tunability | |
| Wavelength | |
| Power Stability | |
| Modulation Frequency | |
| Pulse Energy (mJ) | |
| Repetition Rate (kHz) | |
| Fiber Connectors | |
| Certifications and Safety | |
| Cooling Method | |
| Housing form | |
| Warranty | |
