M Series MFMC 20000M
A 20kW multi-module fiber laser delivering BPP 3.2–4.2 mm·mrad beam quality, CE-certified for cutting and welding.

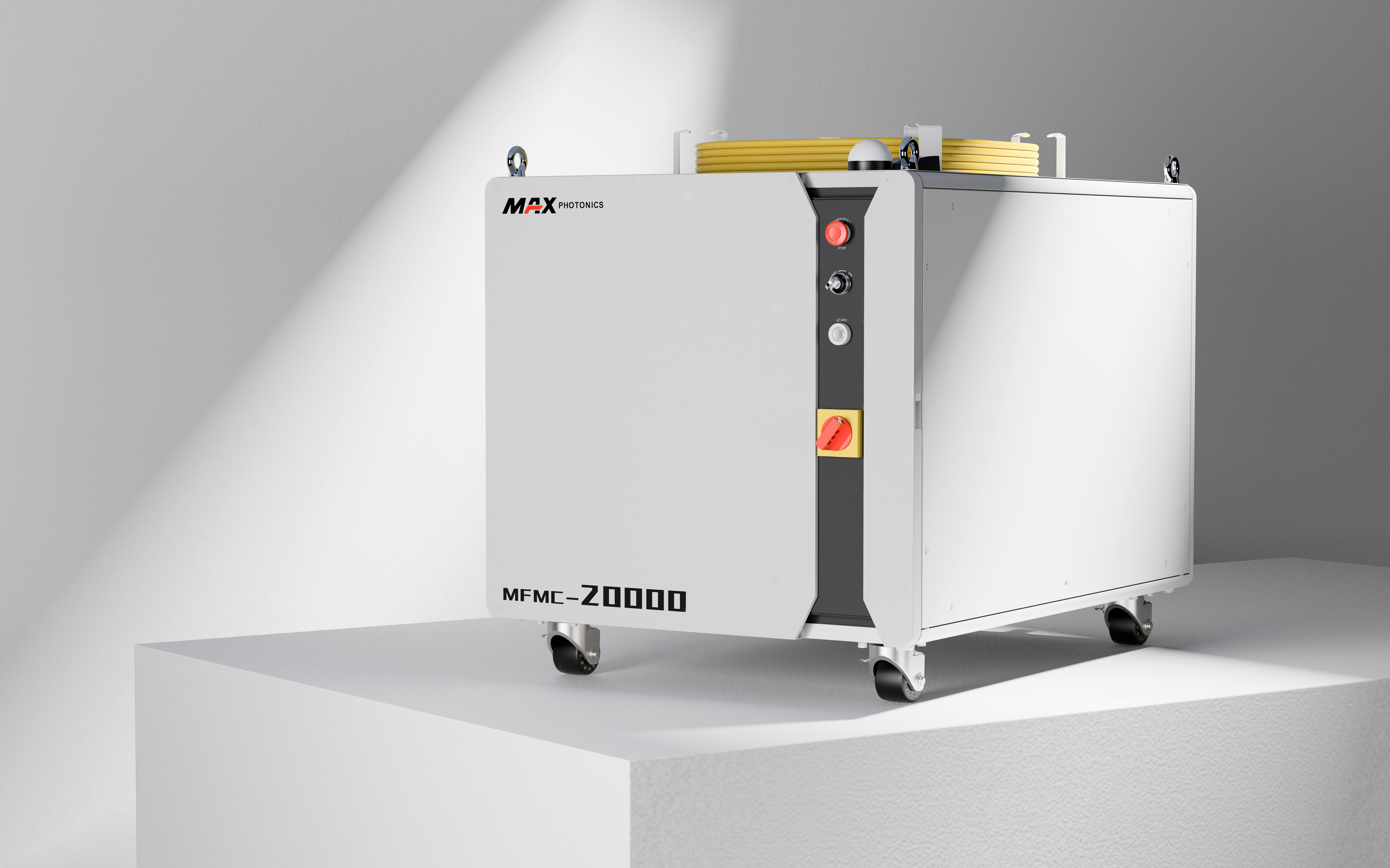

M Series MFMC 20000 Industrial Fiber Laser
The MFMC 20000M is the lower-power model in the M Series' cabinet-mounted multi-module pair, combining multiple laser modules into a single 20kW output for cutting and welding work. Beam quality (BPP 3.2–4.2 mm·mrad @100μm) stays consistent across the full duty cycle, with catalogue example applications including carbon steel and stainless steel cutting.
Output is tunable from 10% to 100% of rated power, with power stability holding within ±1% over an hour of continuous running. It connects over digital I/O, draws power from a 400V three-phase supply, and ships CE-certified with a 3-year standard warranty.
Key Features
A beam parameter product of 3.2–4.2 mm·mrad at a 100μm core (4.5–6.0 at 150μm) keeps output consistent across cutting and welding work in this multi-module cabinet pair.
Output is adjustable from 10% to 100% of rated power, with modulation up to 5kHz, for dialing in exactly the energy a given material or joint calls for.
Power output holds within ±1% over an hour of continuous running, so results stay consistent from the first part of a shift to the last.
Digital I/O connectivity drops the MFMC 20000M into existing cutting and welding cells without custom middleware.
Multiple laser modules are combined into a single cabinet enclosure, giving the MFMC 20000M its 20kW output in one integrated unit.
At 830 × 1109 × 752mm and roughly 380kg, the MFMC 20000M is the lighter and more compact of this multi-module pair, against the MFMC 30000M's 470kg.
Application Examples
Product Comparison
Select products from the dropdown options below to compare parameters and find your perfect laser.
| Product type | |
| Series | |
| Nominal power | |
| Module | |
| Polarization | |
| Power Redundancy | |
| Power Tunability | |
| Wavelength | |
| Power Stability | |
| Modulation Frequency | |
| Pulse Energy (mJ) | |
| Repetition Rate (kHz) | |
| Fiber Connectors | |
| Certifications and Safety | |
| Cooling Method | |
| Housing form | |
| Warranty | |
