M Series MFSC 12000M
A 12kW single-module fiber laser delivering BPP 1.4–2.0 mm·mrad beam quality, CE-certified for cutting and welding.

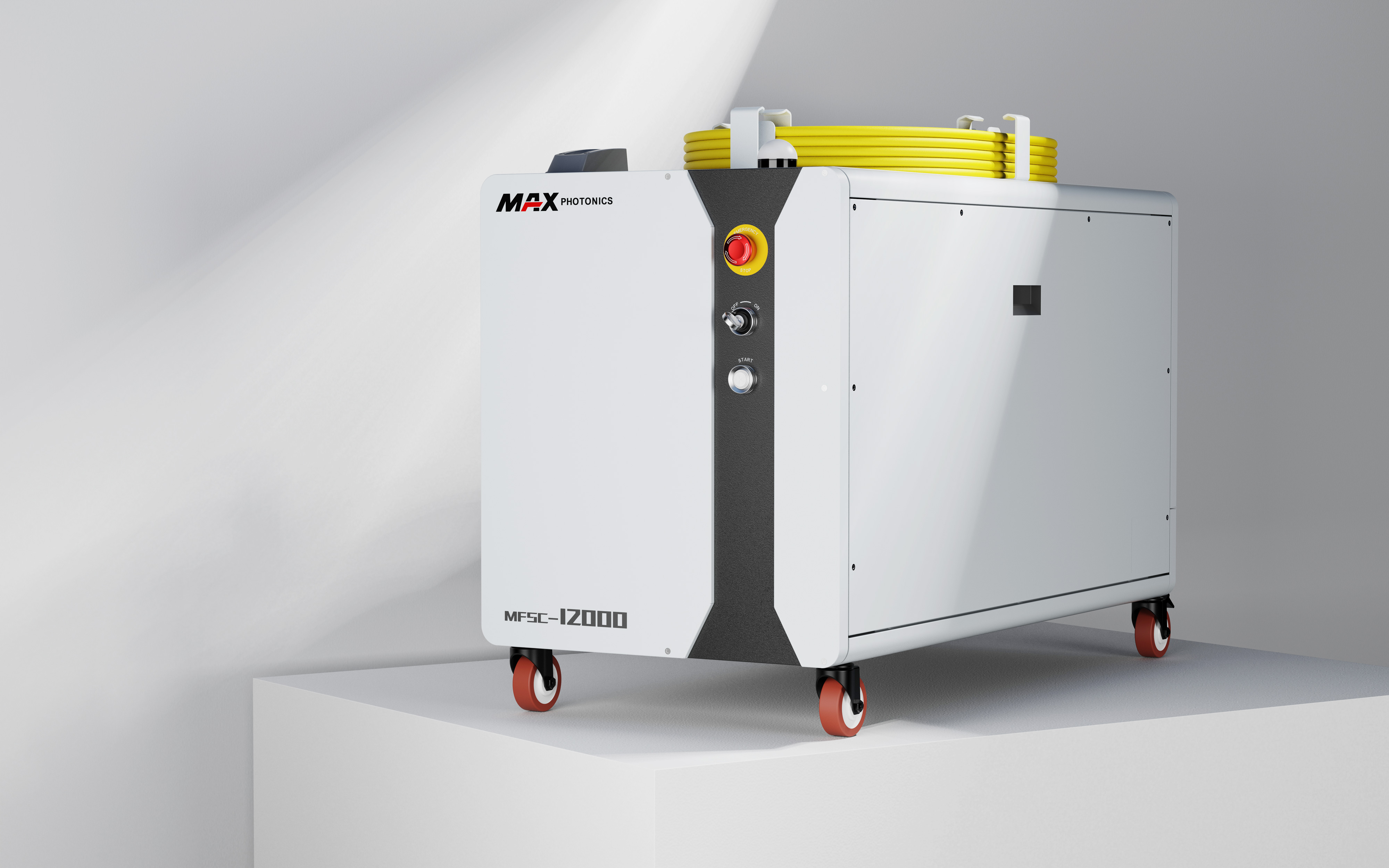

M Series MFSC 12000 Industrial Fiber Laser
The MFSC 12000M is the entry point into the M Series' cabinet-mounted single-module lineup, built for cutting and welding work. At 12kW, it runs in CW or pulsed operating modes with beam quality of BPP 1.4–2.0 mm·mrad (@50μm) — tight enough for clean edges on carbon steel, brass, and general metal cutting.
Output is tunable from 10% to 100% of rated power, with a modulation frequency of up to 5kHz for controlled, lower-power passes as well as full-power work. It connects over digital I/O, draws up to 40kW from a 400V three-phase supply, and ships CE-certified with a 3-year standard warranty.
Key Features

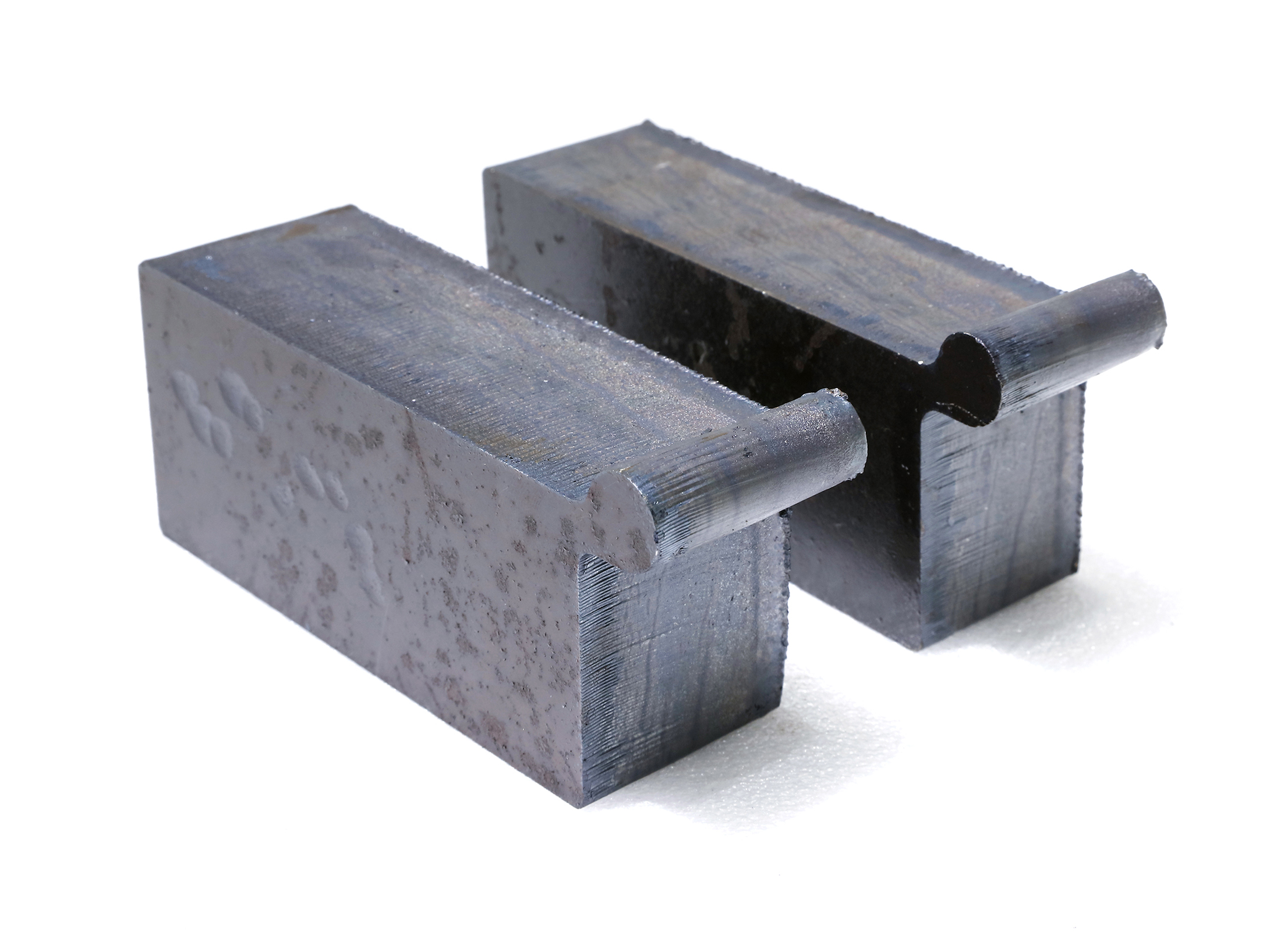

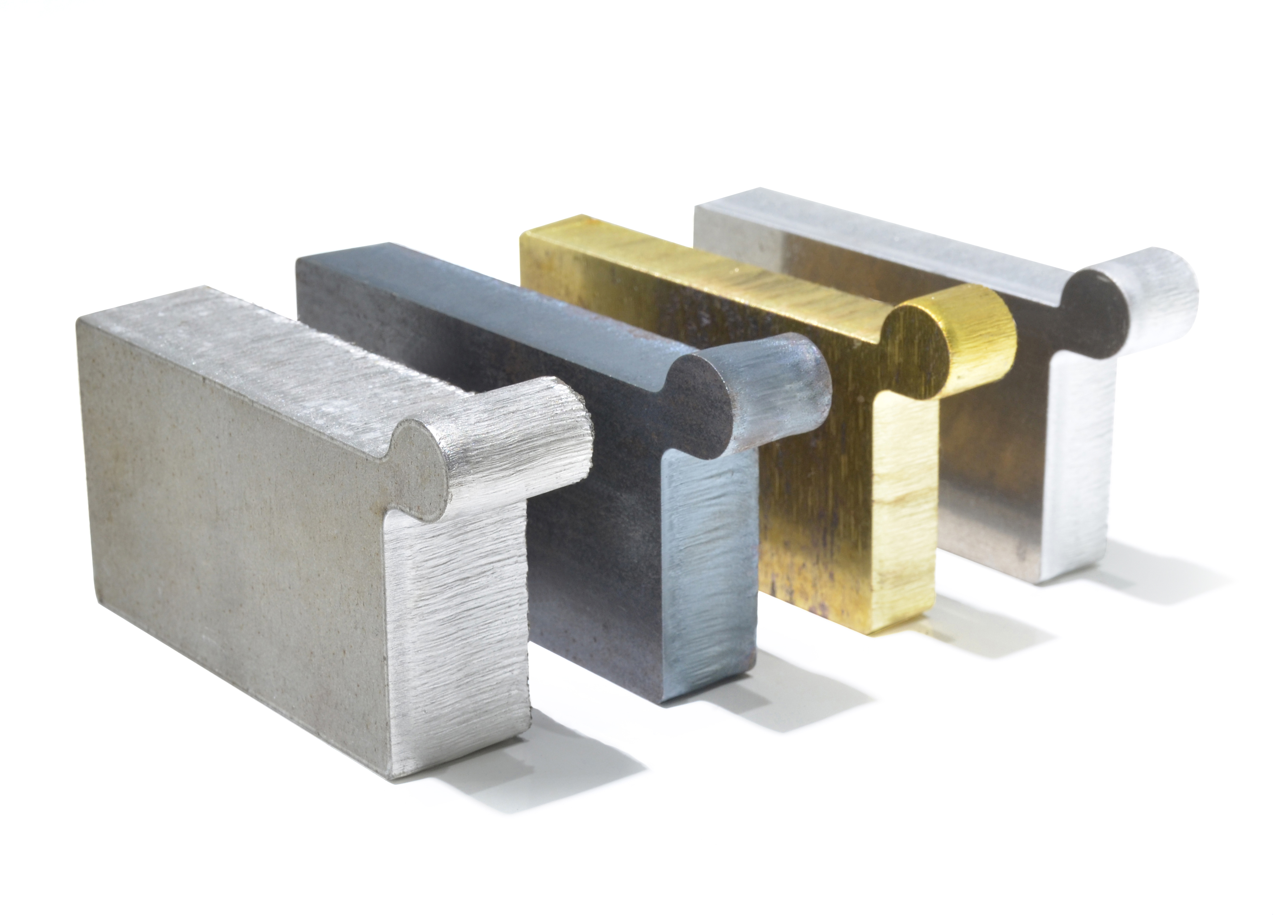

A beam parameter product of 1.4–2.0 mm·mrad through a 50μm fiber core (3.0–3.8 at 100μm) keeps the focused spot tight for clean edges on carbon steel, brass, and general metal cutting.
Runs in continuous-wave or pulsed mode, giving flexibility to match output delivery to the cutting or welding process at hand.
Output is adjustable from 10% to 100% of rated power, with modulation up to 5kHz, for dialing in exactly the energy a given material, thickness, or joint calls for.
Digital I/O connectivity drops the MFSC 12000M into existing cutting and welding cells without custom middleware.
Runs on a closed water-cooling loop across a +10°C to +40°C operating range, with humidity tolerance up to 85% for varied shop-floor conditions.
At 520 × 1060 × 627mm and roughly 260kg, the MFSC 12000M's cabinet-mounted chassis integrates the laser source, cooling, and control systems into one enclosure.
Application Examples
