MOPA MFPT 30M
A 30W, CE-certified miniaturized pulsed fiber laser delivering M² ≤1.5 beam quality for marking and engraving.

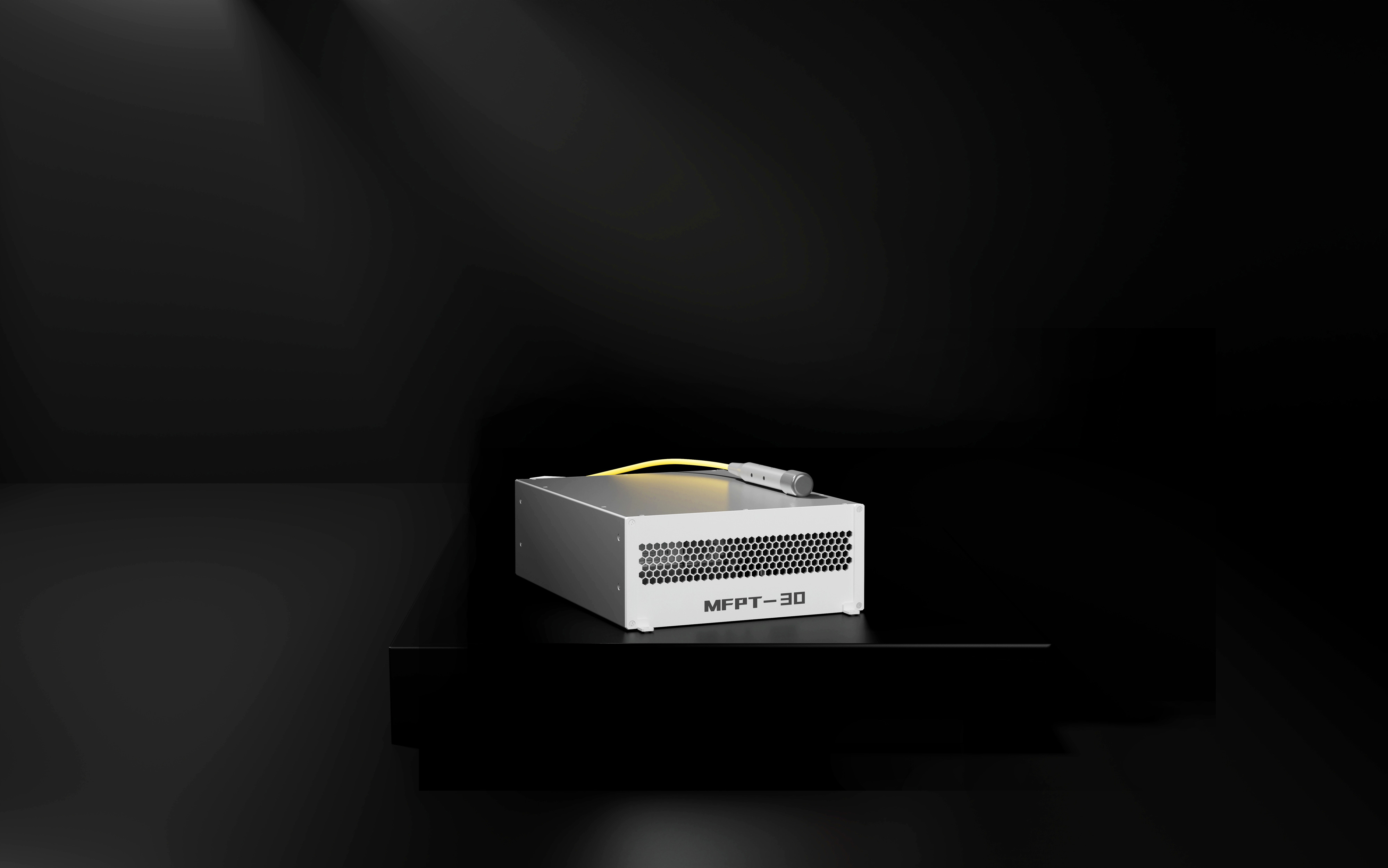

MOPA MFPT 30M Pulsed Fiber Laser
The MFPT 30M steps up to 30W within the same miniaturized architecture, beam quality (M² ≤1.5), and 220 × 166 × 70mm footprint as the MFPT 20M, for marking and engraving work that calls for more power per pass — faster cycle times on denser marks or harder materials.
Like the MFPT 20M, output is tunable from 10% to 100% of rated power, with repetition rates from 1 to 4000kHz. It runs on air cooling, draws 150W from a 24VDC supply — the same as the MFPT 20M — and ships CE-certified with a 2-year standard warranty, extendable up to 5 years.
Key Features
The same M² ≤1.5 beam quality as the MFPT 20M carries through at 30W, keeping marks and engraved detail consistent as power steps up.
Runs in continuous-wave or pulsed mode, with pulse widths from 1ns down to 2ns, to match the mark type a given material calls for.
Adjustable from 1 to 4000kHz, for controlling mark density and depth without changing hardware.
Output is adjustable from 10% to 100% of rated power, for dialing in exactly the energy a given material or finish calls for.
Runs on air cooling rather than a closed water loop, simplifying installation for bench-top or OEM integration.
At 220 × 166 × 70mm and roughly 2.4kg — identical to the MFPT 20M — the MFPT 30M delivers 50% more power without a larger footprint.
Application Examples
Product Comparison
Select products from the dropdown options below to compare parameters and find your perfect laser.
| Product type | |
| Series | |
| Nominal power | |
| Module | |
| Polarization | |
| Power Redundancy | |
| Power Tunability | |
| Wavelength | |
| Power Stability | |
| Modulation Frequency | |
| Pulse Energy (mJ) | |
| Repetition Rate (kHz) | |
| Fiber Connectors | |
| Certifications and Safety | |
| Cooling Method | |
| Housing form | |
| Warranty | |
