MOPA MFPT 500M/C
A 500W water-cooled, CE-certified pulsed fiber laser delivering M² ≤1.7 beam quality for precision welding, rust removal, and material processing.

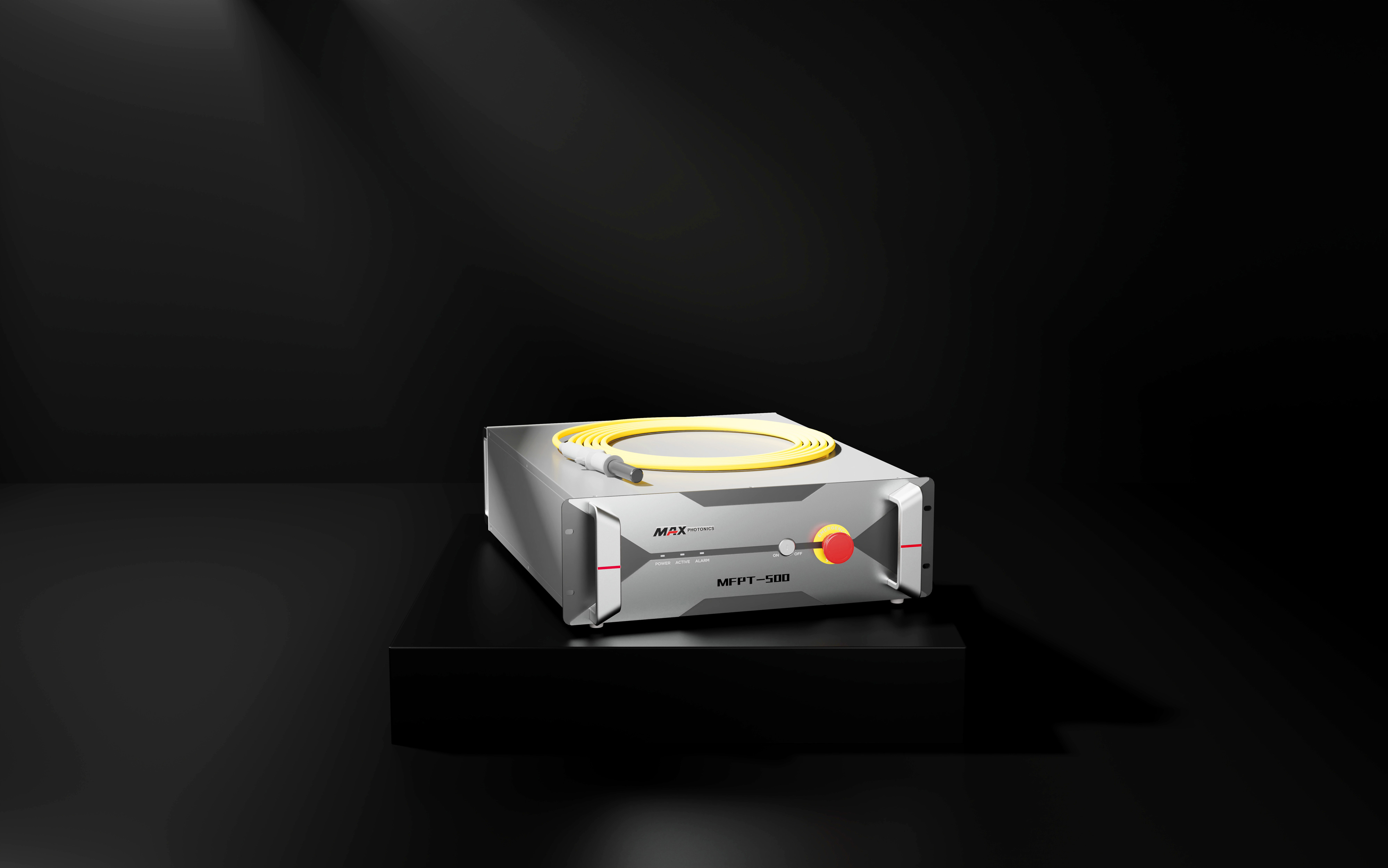

MOPA MFPT 500M/C Pulsed Fiber Laser

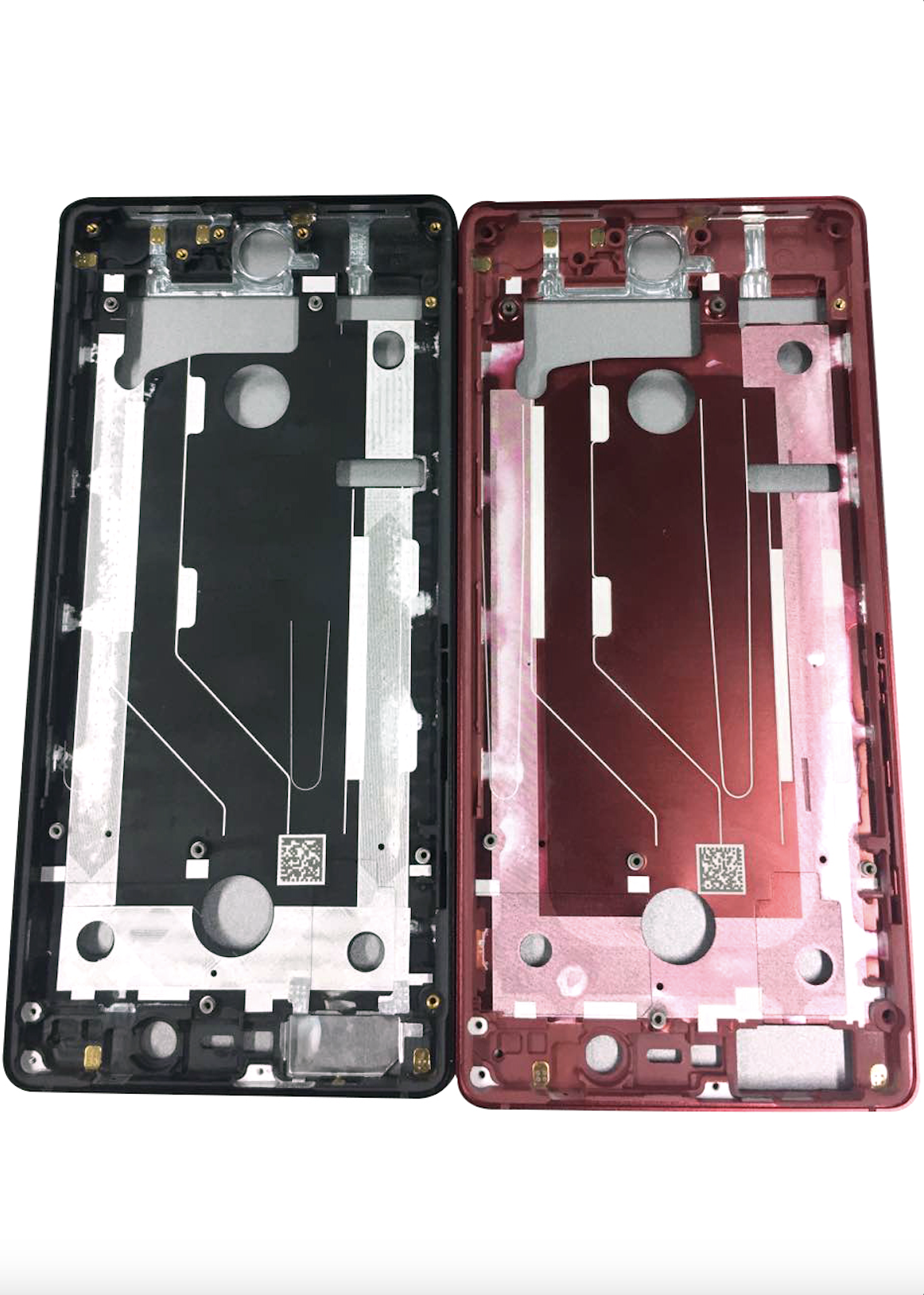

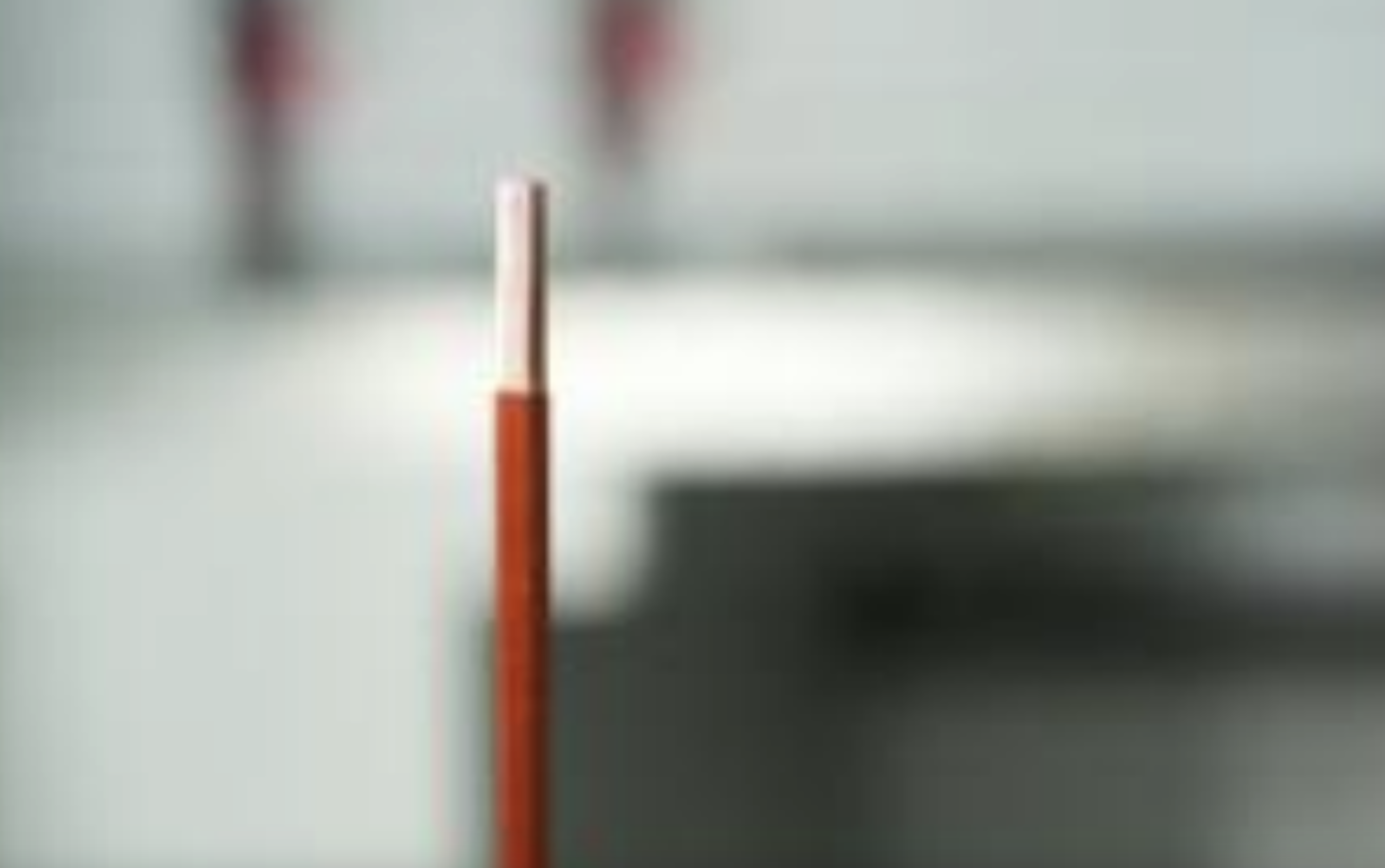

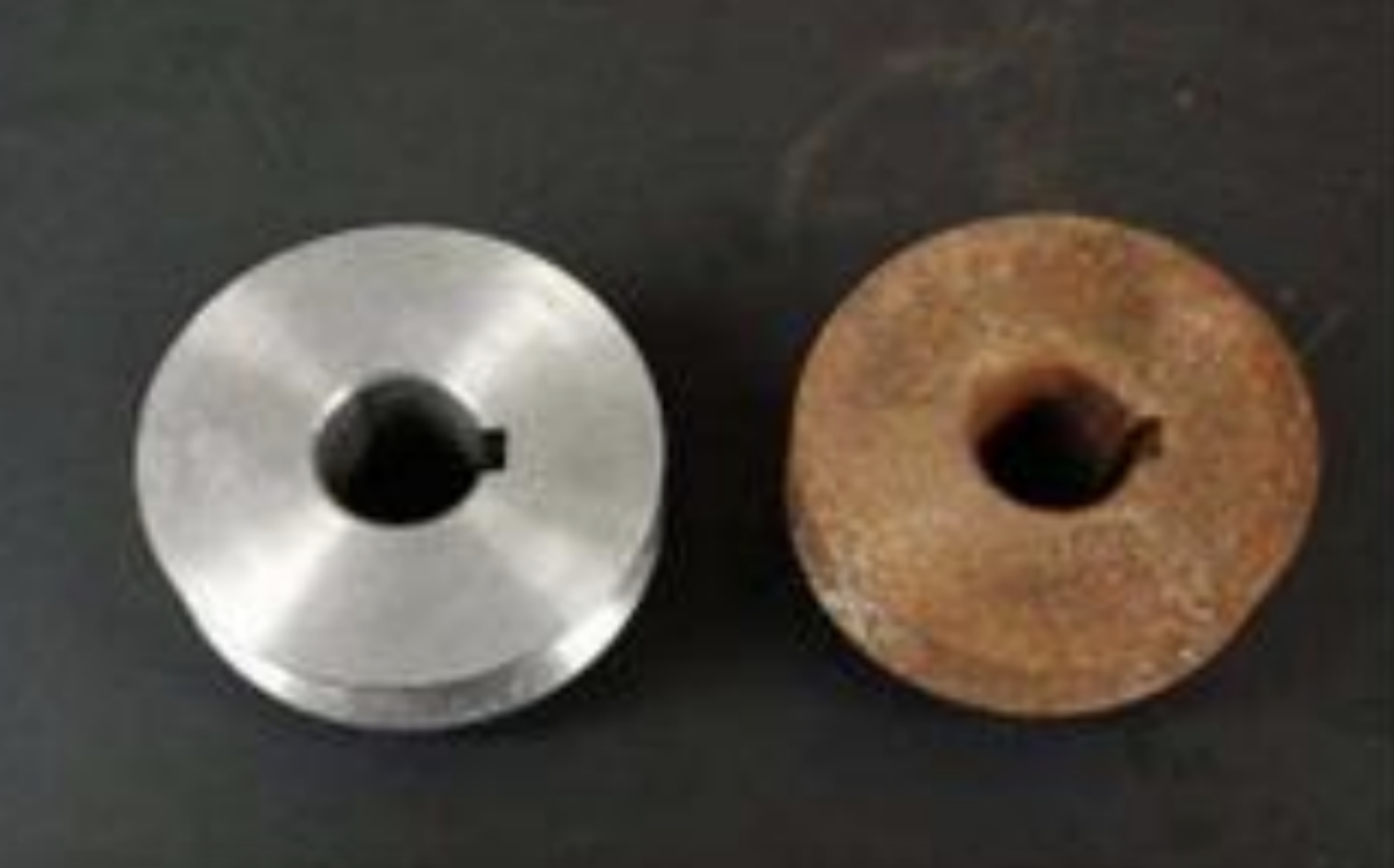

The MFPT 500M/C is MOPA's 500W pulsed fiber laser built for precision welding, rust removal, and fine material-processing work, with a tight M² ≤1.7 beam quality and a fixed 7.0±0.5mm output beam diameter for consistent, repeatable results. Typical applications include mobile phone spring welding, gear rust removal, and copper wire de-insulation — precision work at small scale rather than high-throughput industrial cleaning.
Output runs in CW or pulsed mode, tunable from a 1ns(CW) pulse width down to a 10 to 500ns pulsed range, with a repetition rate adjustable from 1 to 8000kHz and a single pulse energy of 2mJ. It connects via fixed isolator or QBH fiber output over a 5 to 10m cable, runs on water cooling — circulating distilled water or a glycol antifreeze mix — draws up to 1500W from a 230VAC supply, and ships CE-certified with a 2-year standard warranty, extendable up to 5 years, weighing roughly 30kg.
Key Features
A tight M² ≤1.7 beam quality keeps precision high for fine-scale welding and material-processing work.
A 2mJ single pulse energy and a repetition rate adjustable from 1 to 8000kHz give fine control over heat input for delicate welding work.
Suited to precision work such as spring welding, rust removal, and wire de-insulation — fine-scale jobs that call for tight beam control rather than high-throughput industrial cleaning.
Available with a fixed isolator output or a QBH connector, for flexibility in how the laser integrates into a production line.
Runs on water cooling — circulating distilled water or a glycol antifreeze mix — to keep output stable during precision welding work.
Runs in continuous-wave or pulsed mode depending on the job, switching between precision welding and cleaning or material-processing work without swapping hardware.
Application Examples
