Pro45 MFSC 6000
A 6kW single-module fiber laser delivering up to 45% Wall Plug Efficiency and 20% built-in power redundancy for cutting, welding, and cladding.

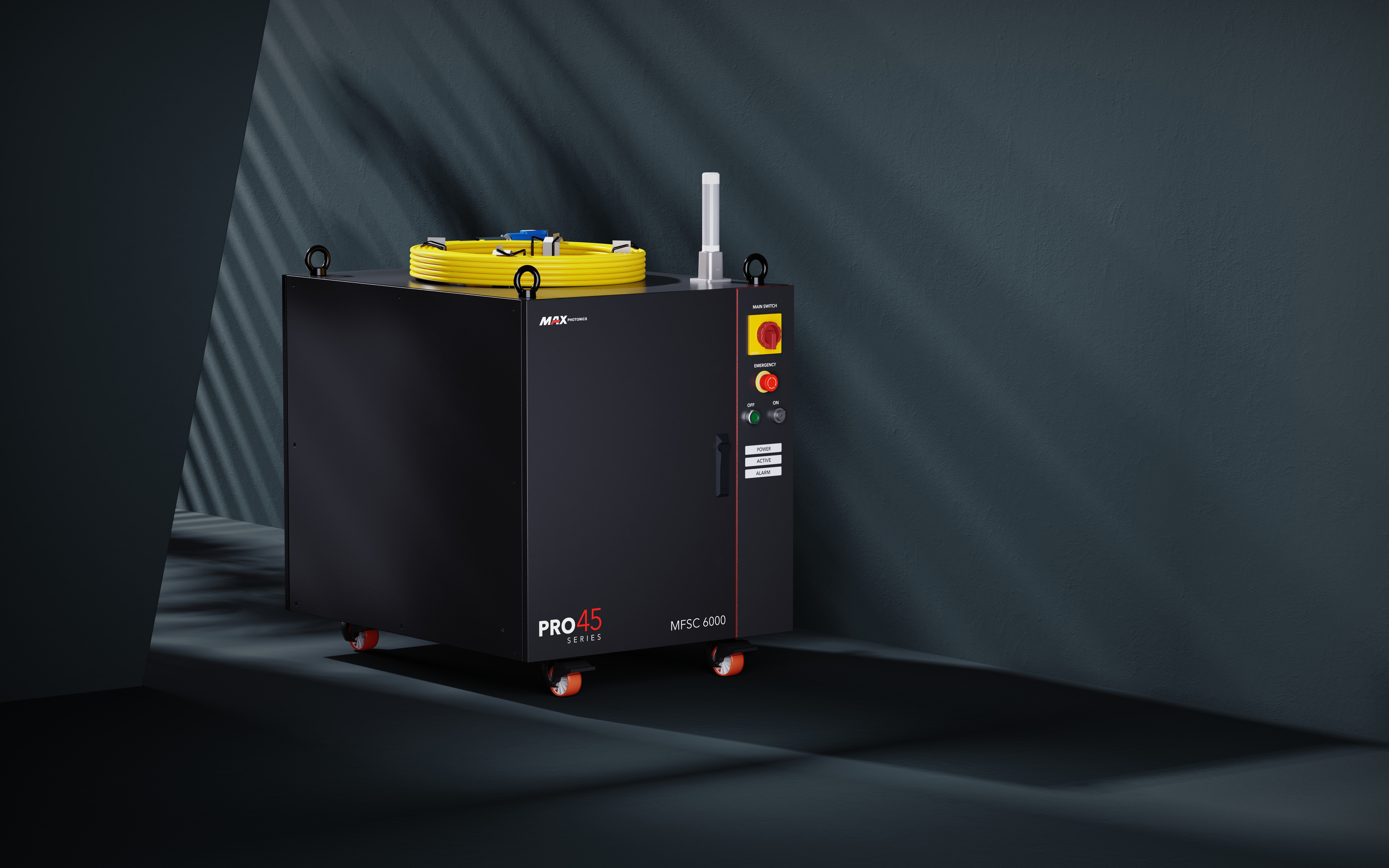

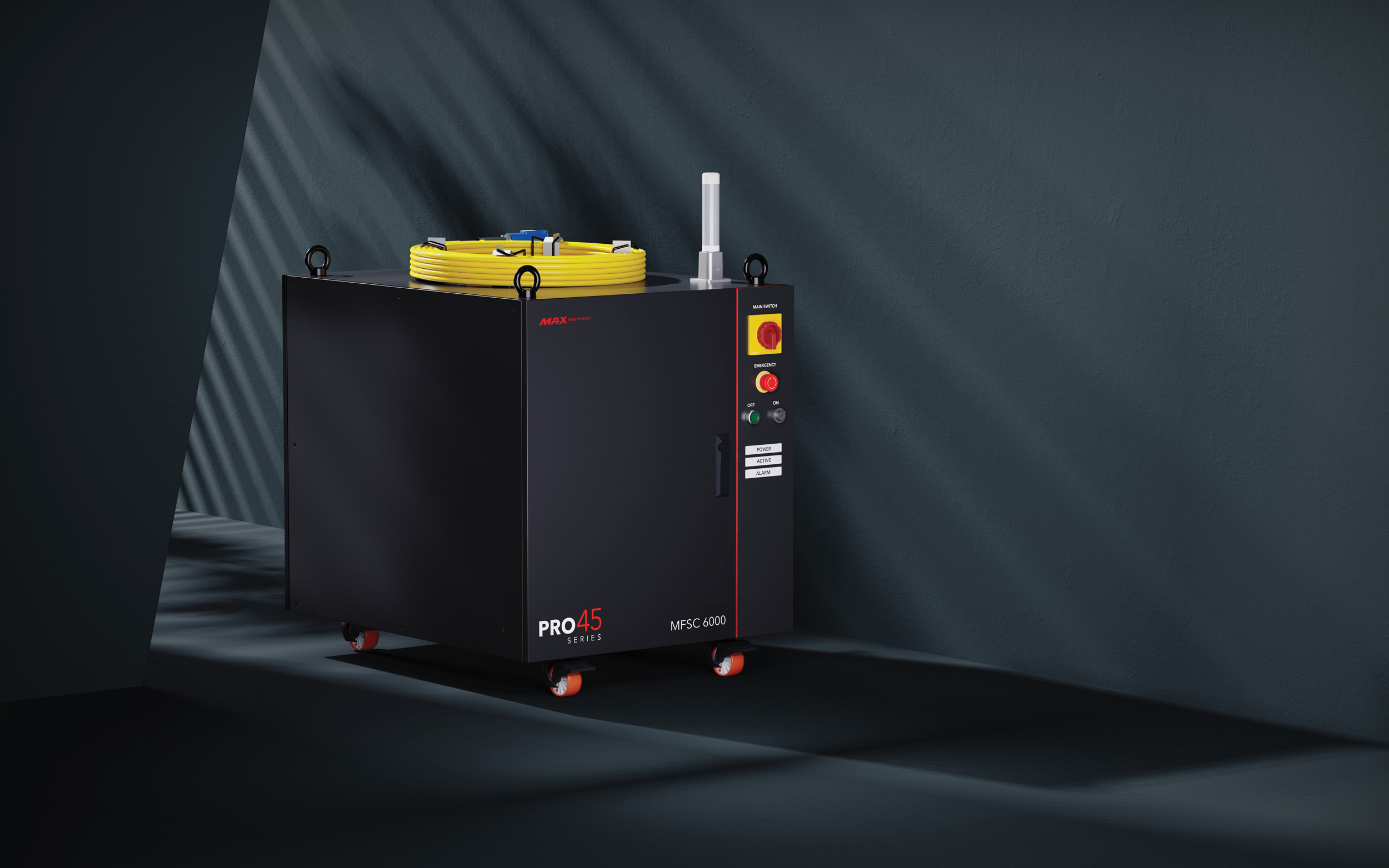

Pro45 MFSC 6000 Industrial Fiber Laser
At 6kW, the MFSC 6000 is the entry point into the Pro45 Series' single-module lineup, pairing that power output with a wall plug efficiency of up to 45% — meaning more of the electricity you pay for comes out as usable laser output, and less as heat your cooling system has to remove. Its beam quality (BPP 3.0–4.0 mm·mrad) stays tight enough to cut clean edges on sheet steel and hold consistent battery tab and busbar welds without retuning between jobs.
Built-in power redundancy of ≥20% means the laser keeps running at full rated output even if part of the system underperforms — no unplanned shutdown mid-shift waiting on a repair. It connects over EtherCAT, PROFINET, or digital I/O into existing cutting and welding cells, and ships CE, FDA, and ETL certified, with safety systems rated to ISO 13849-1:2015 Performance Level D and backed by a 5-year standard warranty.
Key Features
Less energy is lost as heat and more comes out as usable beam power — cutting electricity costs and reducing the load on your cooling system.
≥20% of rated power is held in reserve, so the laser keeps running at full output even if part of the system underperforms — no unplanned downtime waiting on a repair.
Power output stays within ±1% over an hour of continuous running, and a beam parameter product of 3.0–4.0 mm·mrad keeps cut edges and weld beads consistent from the first part of a shift to the last.
Connects directly into existing production lines over EtherCAT, PROFINET, or digital I/O, without custom middleware to bridge the laser into your control system.
Runs continuously across a +10°C to +40°C operating range on a closed water-cooling loop, with standby power under 100W when idle between jobs.
At 642 × 1000 × 700mm and roughly 230kg, the single-module chassis fits through a standard doorway and moves on built-in casters for repositioning on the shop floor.

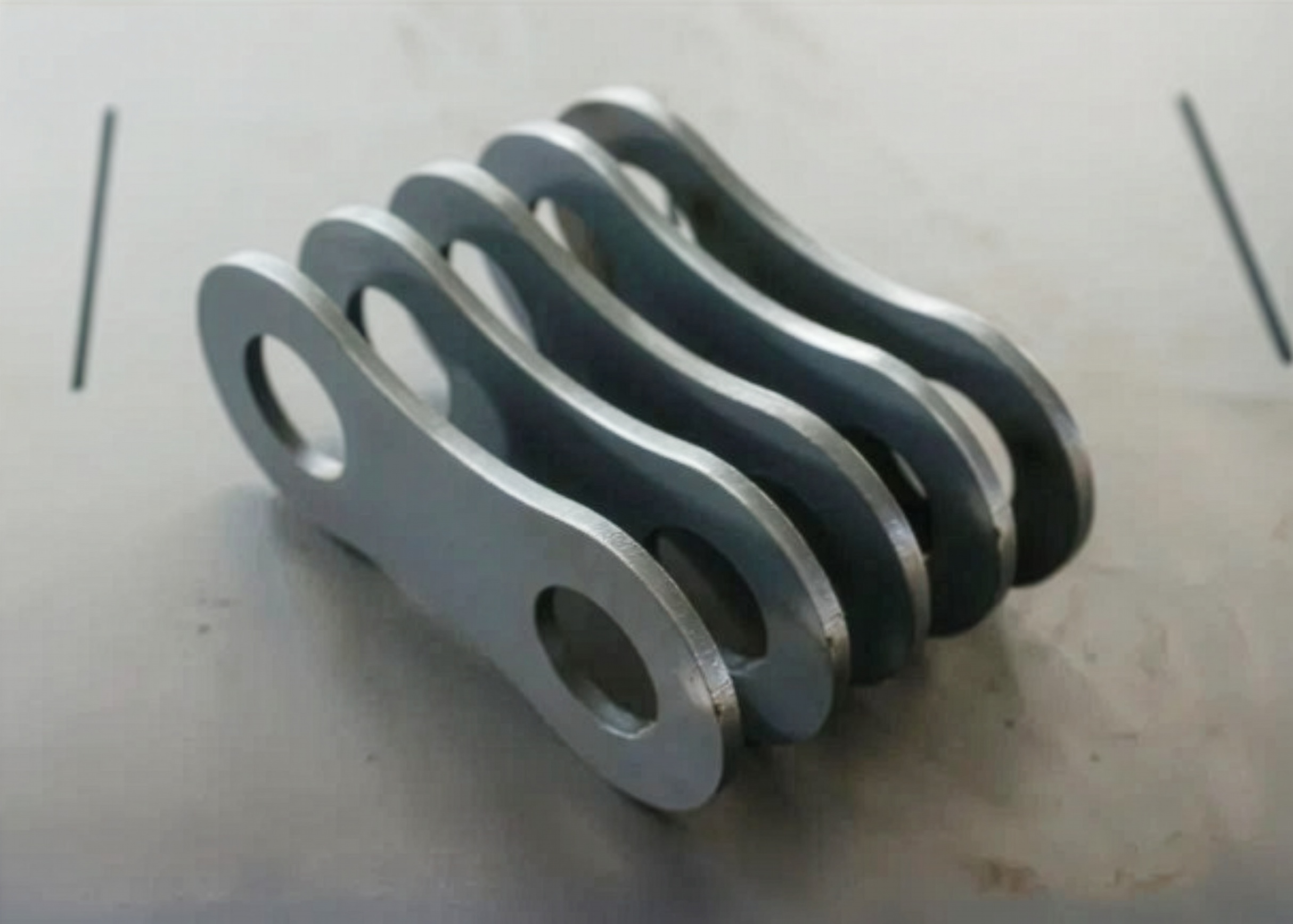

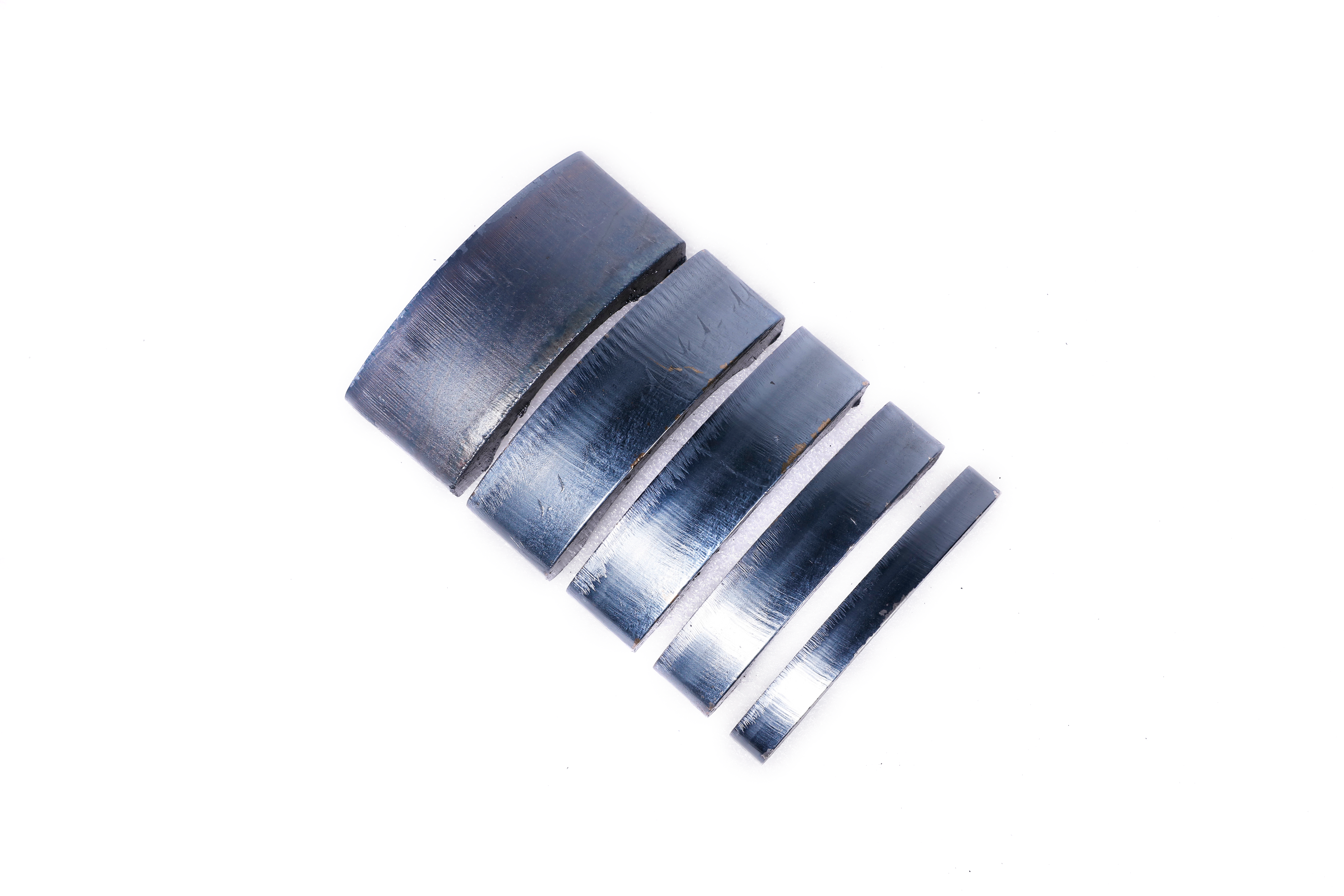

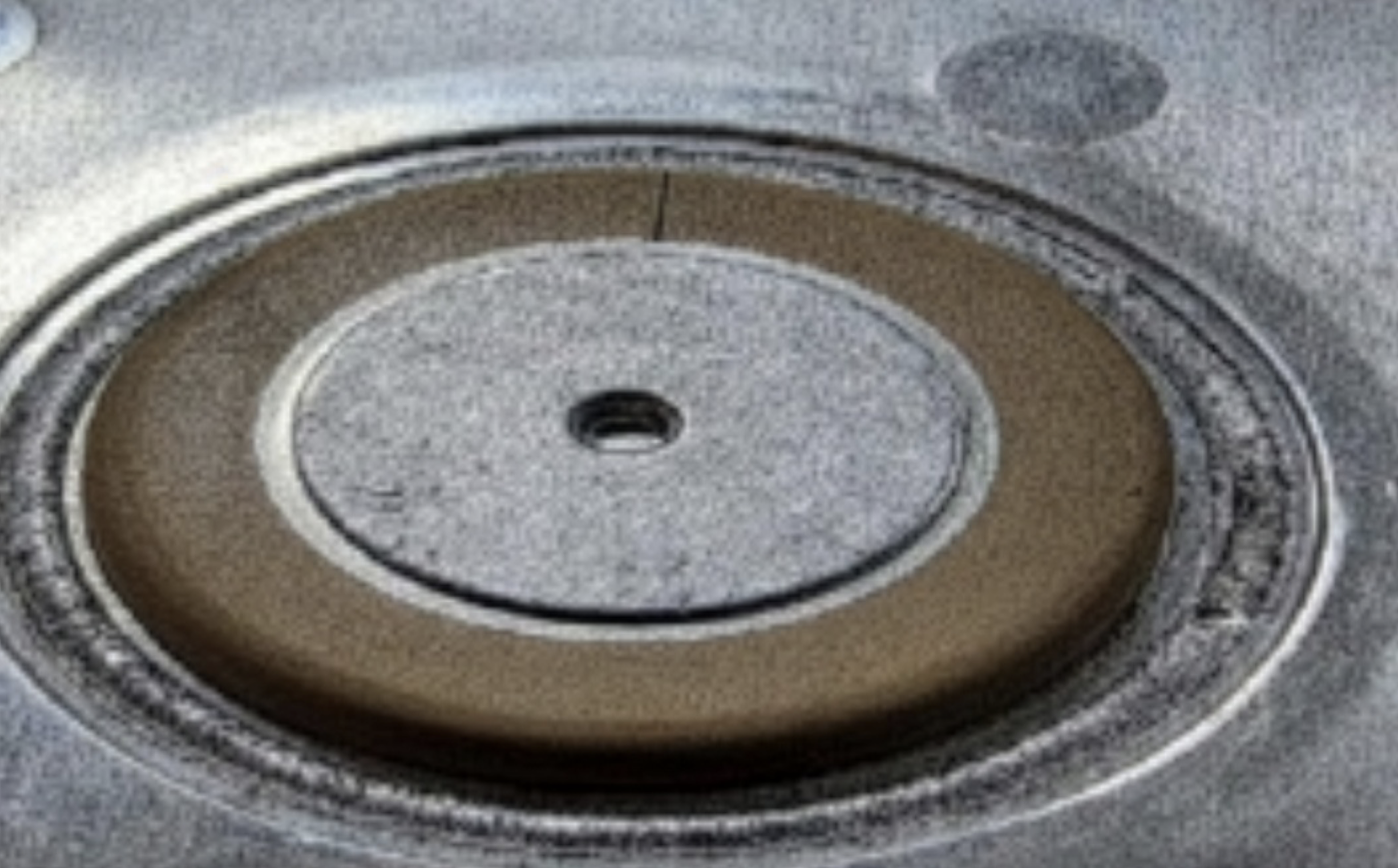

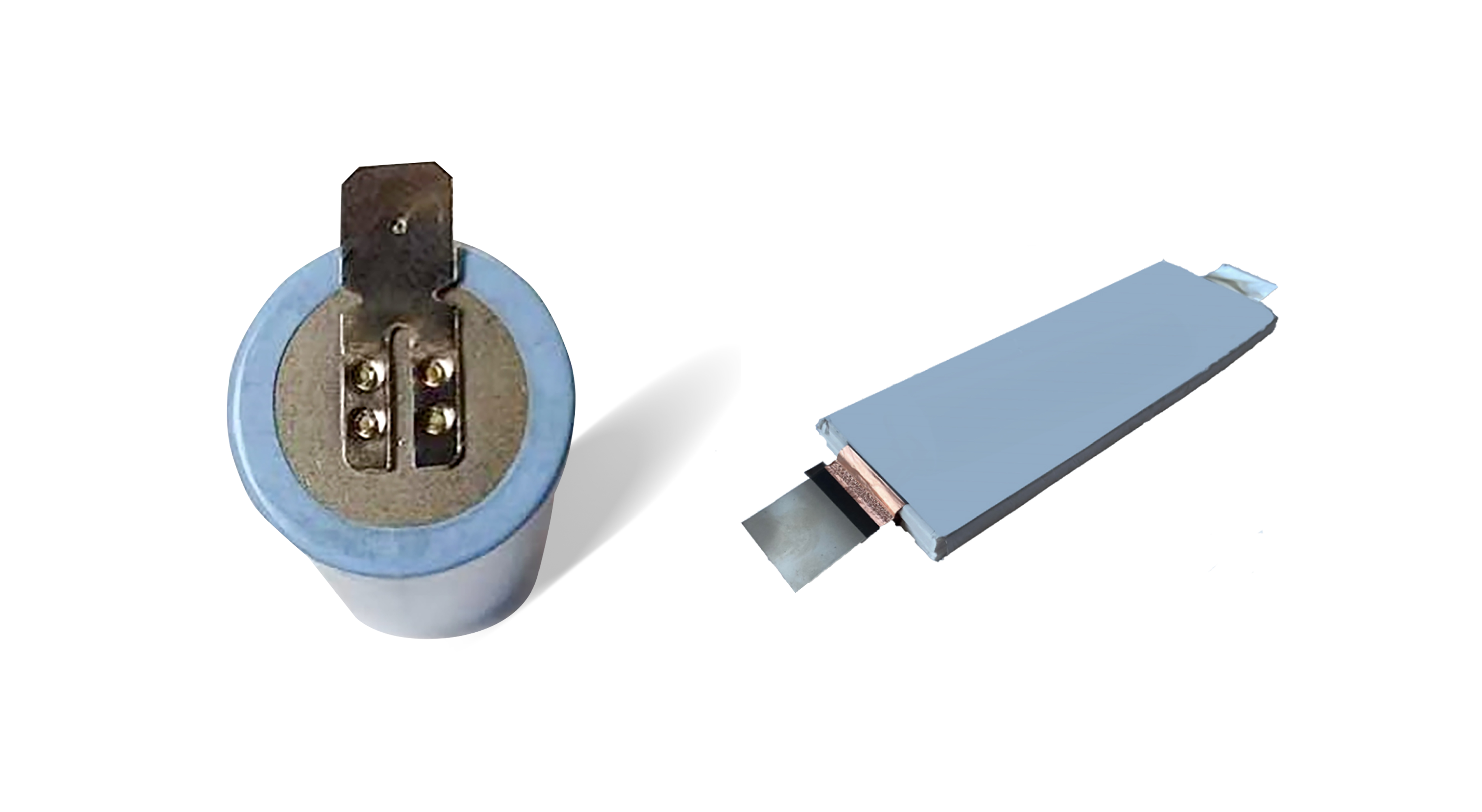

Application Examples
Product Comparison
Select products from the dropdown options below to compare parameters and find your perfect laser.
| Product type | |
| Series | |
| Nominal power | |
| Module | |
| Polarization | |
| Power Redundancy | |
| Power Tunability | |
| Wavelength | |
| Power Stability | |
| Modulation Frequency | |
| Pulse Energy (mJ) | |
| Repetition Rate (kHz) | |
| Fiber Connectors | |
| Certifications and Safety | |
| Cooling Method | |
| Housing form | |
| Warranty | |
