Q-Switch MFPN 100CL
A 100W air-cooled pulsed fiber laser delivering M² ≤1.6 beam quality for high-speed marking and engraving, including on highly reflective materials.

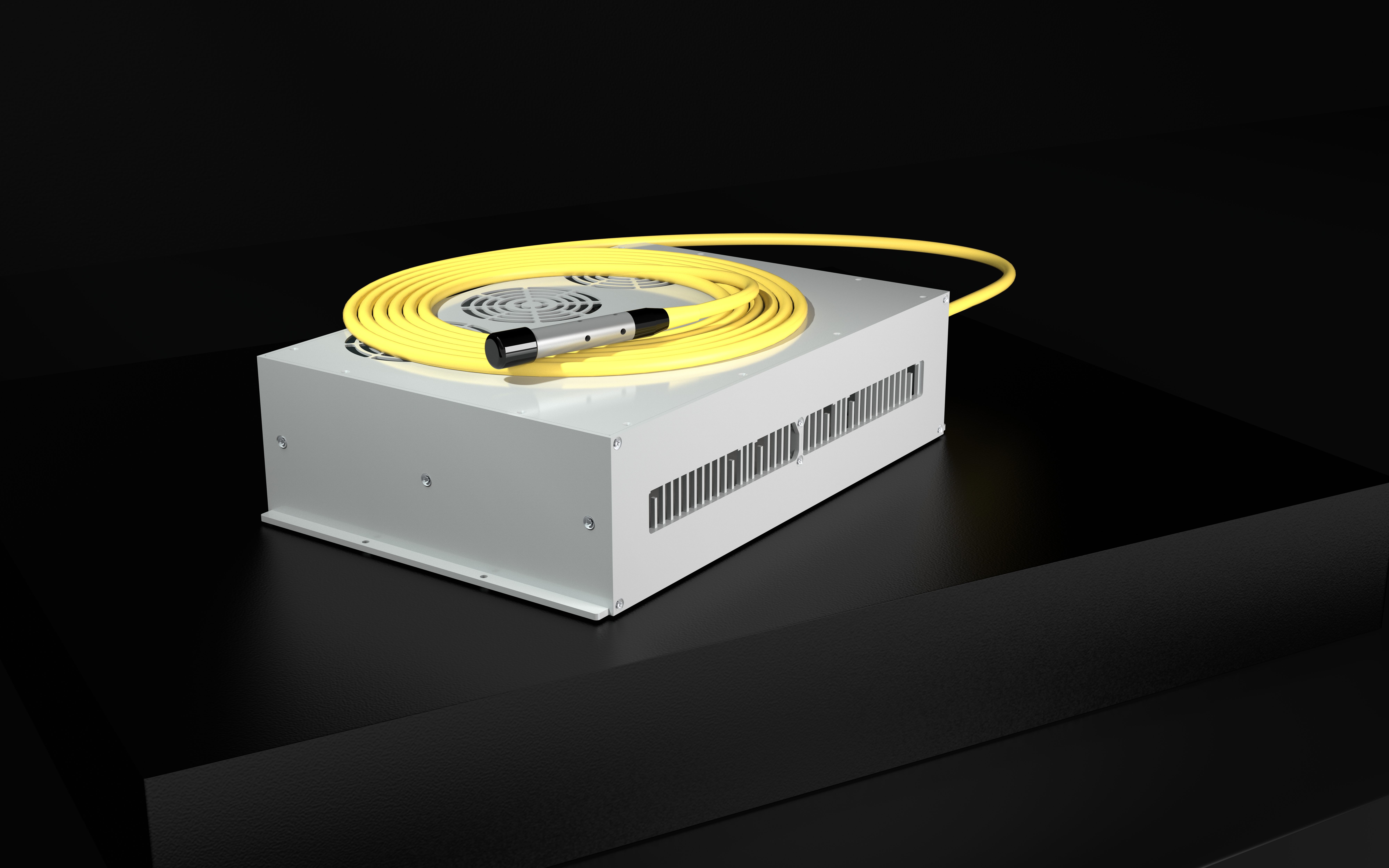

Q-Switch MFPN 100CL Pulsed Fiber Laser
The MFPN 100CL steps up from the Q-Switch Super and Elite trios to 100W, with a single pulse energy of 1.5mJ and a repetition rate adjustable from 20 to 200kHz for high-speed marking and engraving work. It connects via a QCS quick-connect fiber output — unlike the fixed isolator output on the rest of the Q-Switch lineup — for easier integration into automated marking lines.
Output is tunable from 10% to 100% of rated power, with a pulse width of 150 to 190ns and a beam diameter of 5 to 9mm. It connects over a 5 to 10m cable, runs on air cooling — no external chiller needed — draws power from a 24VDC supply, and ships CE, FDA, RoHS, and REACH compliant with a 2-year standard warranty. At 346 × 268 × 120mm and roughly 12kg, it's built for higher-throughput marking lines.
Key Features
A tight M² ≤1.6 beam quality keeps the focused spot fine and consistent, for legible marks and clean engraved detail even at higher power.
A single pulse energy of 1.5mJ and a repetition rate adjustable from 20 to 200kHz give the throughput for high-speed marking and engraving on production lines.
Built for high-speed marking and engraving — the short, high-peak-power pulse of Q-switched output cuts cleanly into reflective materials like data cables and metal components that a standard pulsed laser can struggle with.
As with fiber lasers generally, an all-fiber beam path means there's no free-space optics to jar out of alignment — keeping output stable on uncontrolled production floors and supporting a long service life.
Air cooling removes the need for an external chiller, so the MFPN 100CL drops into space-limited production lines without extra plumbing.
Unlike the rest of the Q-Switch lineup's fixed isolator output, the MFPN 100CL and MFPN 200CL connect via a QCS quick-connect fiber output, for easier integration and swapping in automated lines.

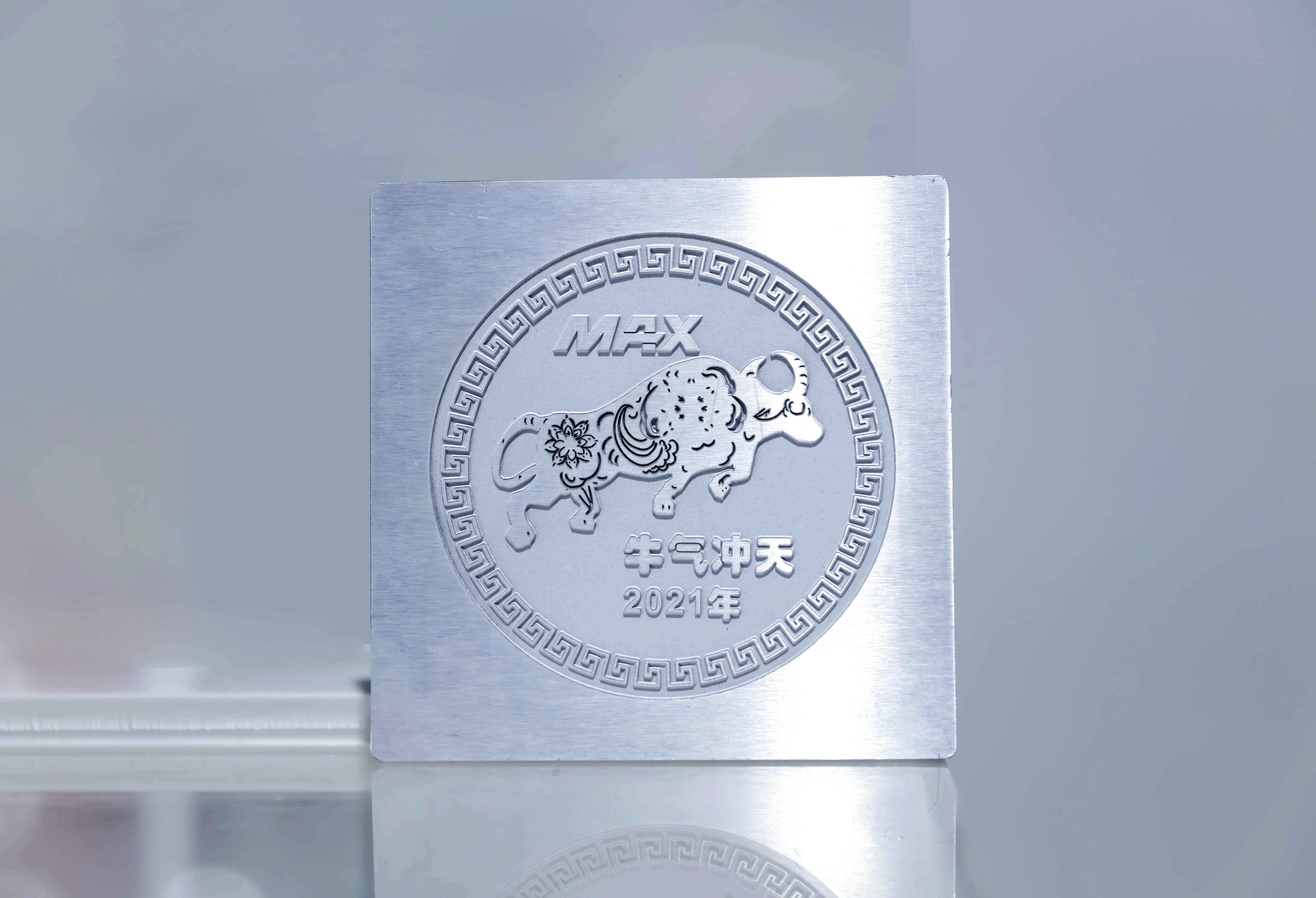

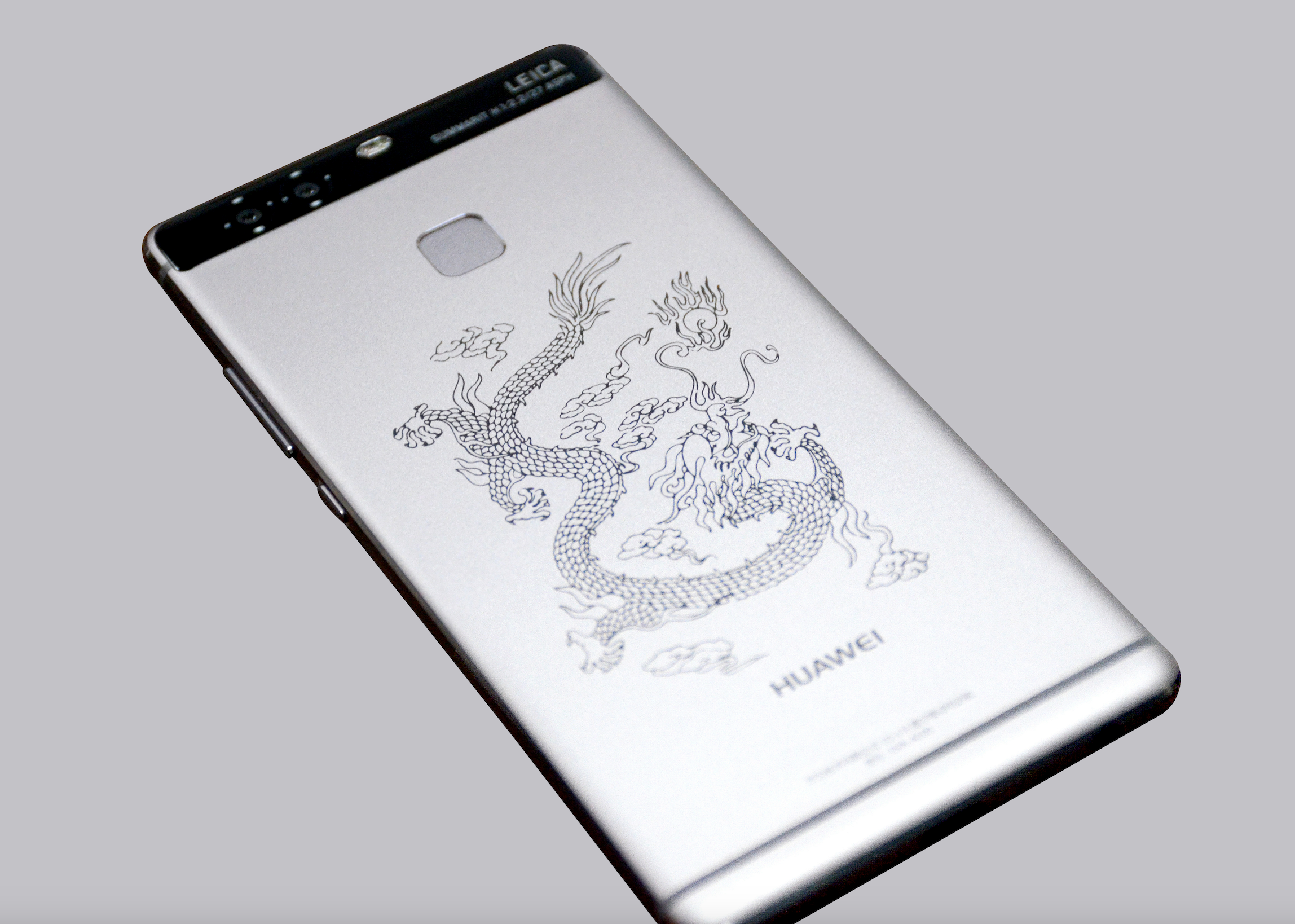

Application Examples
