Q-Switch MFPN 50M Super
A 50W air-cooled pulsed fiber laser delivering M² ≤1.6 beam quality for precision marking, engraving, and cleaning.

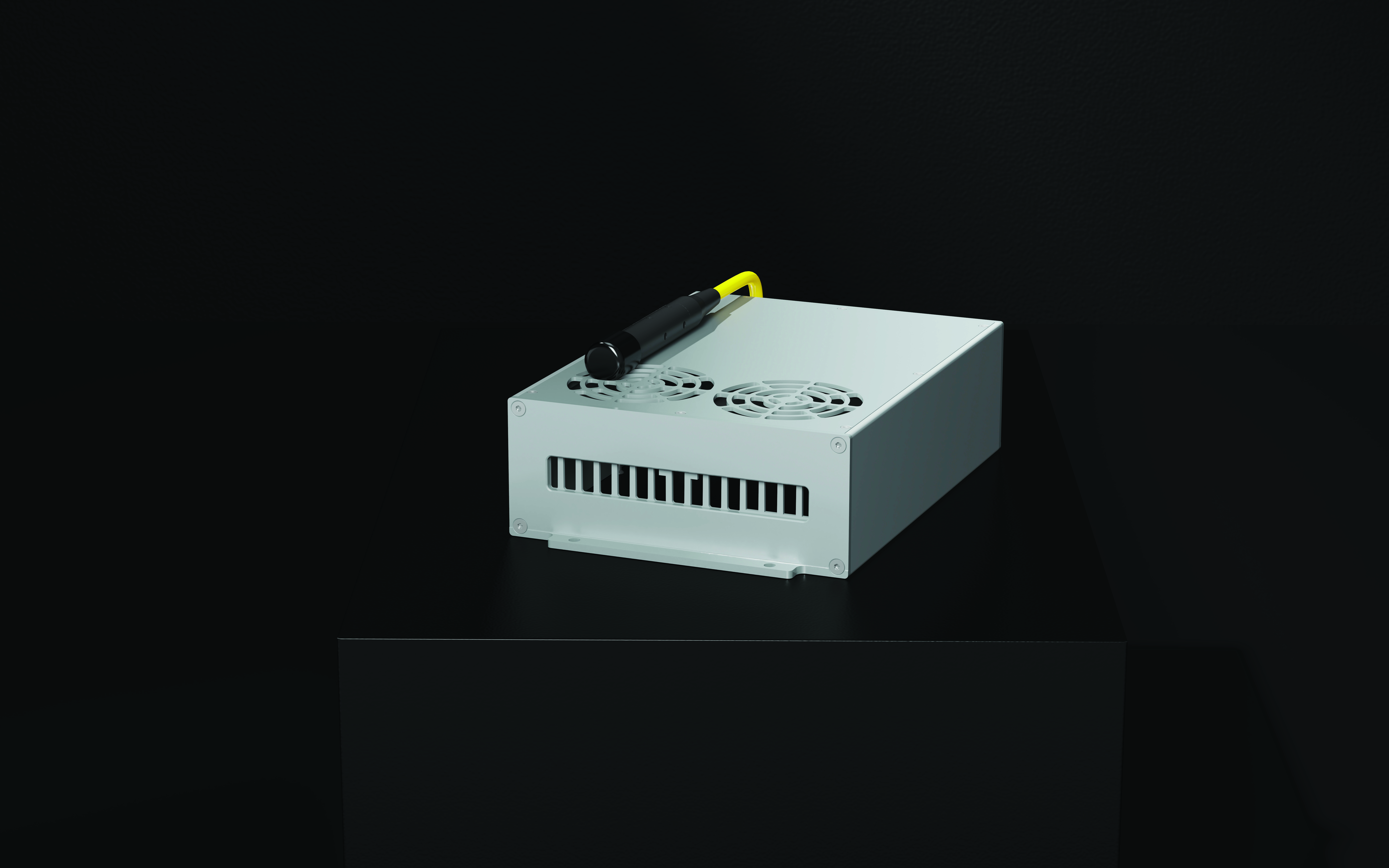

Q-Switch MFPN 50M Super Pulsed Fiber Laser
The MFPN 50M Super tops out the Super trio at 50W, sharing the same 215 × 165 × 74.2mm chassis as the MFPN 30M Super, with a single pulse energy of 1.1mJ and a wider repetition rate range of 45 to 170kHz — more headroom than the MFPN 20M Super or MFPN 30M Super offer, for higher-throughput marking, engraving, and cleaning work, including on highly reflective materials.
Output is tunable from 10% to 100% of rated power, with a pulse width of 90 to 130ns. It connects via a fixed isolator fiber output over a 5m cable (1.9m or 3m optional), runs on air cooling — no external chiller needed — draws power from a 24VDC supply, and ships CE, FDA, RoHS, and REACH compliant with a 2-year standard warranty. At roughly 6kg, it's the highest-power model in the MFPN Super trio.
Key Features
A tight M² ≤1.6 beam quality keeps the focused spot fine and consistent, for legible marks and clean engraved detail.
A single pulse energy of 1.1mJ and a repetition rate adjustable up to 170kHz — the widest range in the Super trio — give fine control over heat input, well suited to Q-switched marking on reflective metals as well as standard materials.
Built for precision marking, chip marking, engraving, and surface cleaning — the short, high-peak-power pulse of Q-switched output cuts cleanly into reflective materials that a standard pulsed laser can struggle with.
As with fiber lasers generally, an all-fiber beam path means there's no free-space optics to jar out of alignment — keeping output stable on uncontrolled production floors and supporting a long service life.
Air cooling removes the need for an external chiller, so the MFPN 50M Super drops into space-limited production lines without extra plumbing.
At roughly 6kg — the same chassis as the MFPN 30M Super — the MFPN 50M Super is the highest-power model in the MFPN 20M/30M/50M Super trio.
Application Examples
Product Comparison
Select products from the dropdown options below to compare parameters and find your perfect laser.
| Product type | |
| Series | |
| Nominal power | |
| Module | |
| Polarization | |
| Power Redundancy | |
| Power Tunability | |
| Wavelength | |
| Power Stability | |
| Modulation Frequency | |
| Pulse Energy (mJ) | |
| Repetition Rate (kHz) | |
| Fiber Connectors | |
| Certifications and Safety | |
| Cooling Method | |
| Housing form | |
| Warranty | |
