X Series MFSC 2000X
A 2kW single-module fiber laser delivering BPP 1.8 mm·mrad beam quality, CE-certified for cutting and welding.

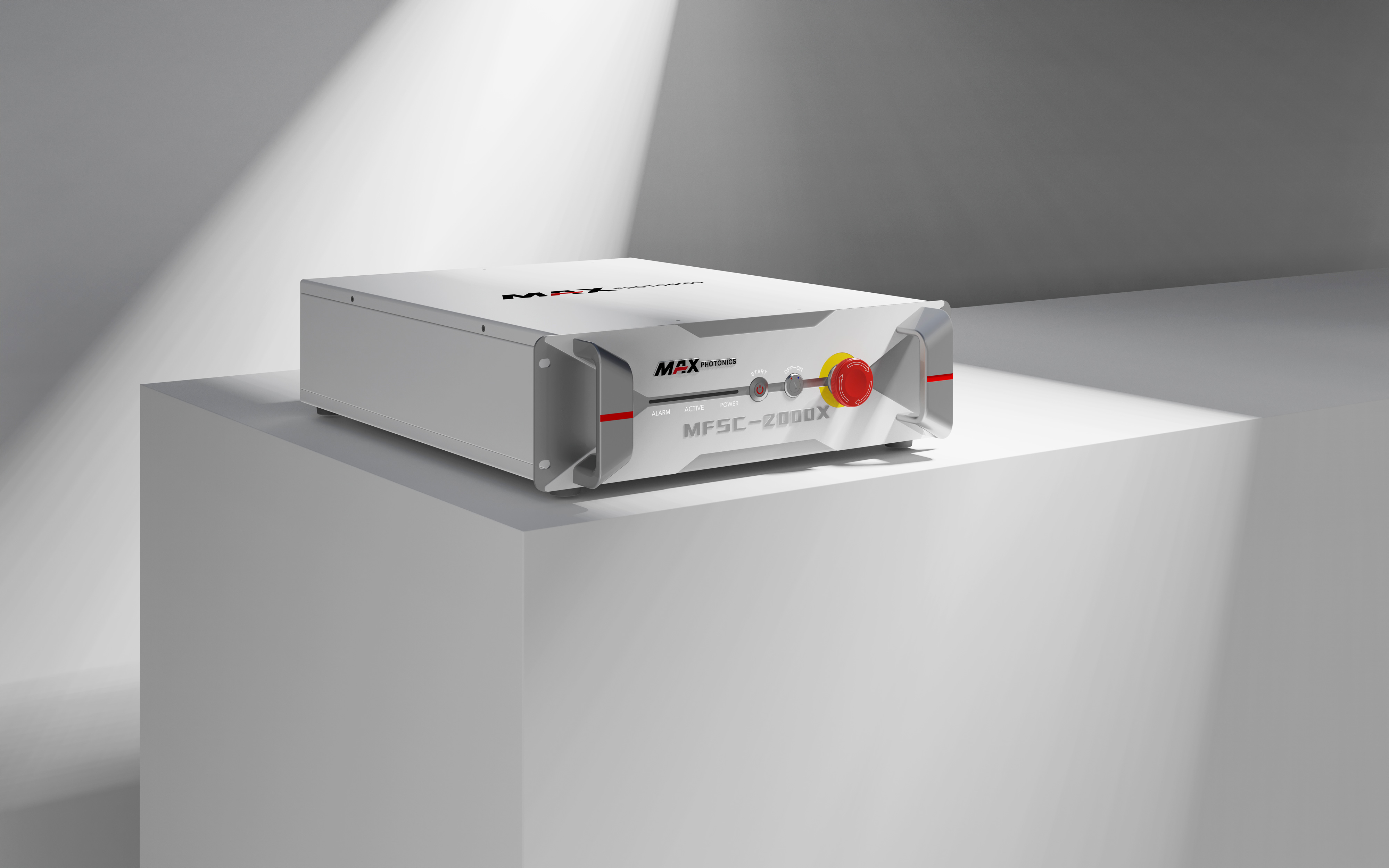

X Series MFSC 2000X Industrial Fiber Laser
The MFSC 2000X steps up to 2kW within the same rack-mounted single-module architecture as the MFSC 1500X, with CW and pulsed operating modes and a slightly wider beam quality of BPP 1.8 mm·mrad (@50μm) — giving it more power per pass for brass cutting, stainless steel welding, and copper welding.
Like the MFSC 1500X, output is tunable from 10% to 100% of rated power, with a modulation frequency of up to 20kHz. It connects over digital I/O, draws a maximum of 6kW from a single-phase 220V supply, and ships CE-certified with a 2-year standard warranty
Key Features
A beam parameter product of 1.8 mm·mrad through a 50μm fiber core holds a tight, consistent spot size for brass cutting, stainless steel welding, and copper welding.
Runs in continuous-wave or pulsed mode, giving flexibility to match output delivery to the cutting or welding process at hand.
Output is adjustable from 10% to 100% of rated power, with modulation up to 20kHz, for dialing in exactly the energy a given material or joint calls for.
Digital I/O connectivity drops the MFSC 2000X into existing cutting and welding cells without custom middleware.
Runs on a closed water-cooling loop across a +10°C to +40°C operating range, with humidity tolerance up to 85% for varied shop-floor conditions.
At 440 × 605 × 88mm and roughly 25kg, the MFSC 2000X steps up in power over the MFSC 1500X while staying compact enough for tight machine layouts or OEM builds.

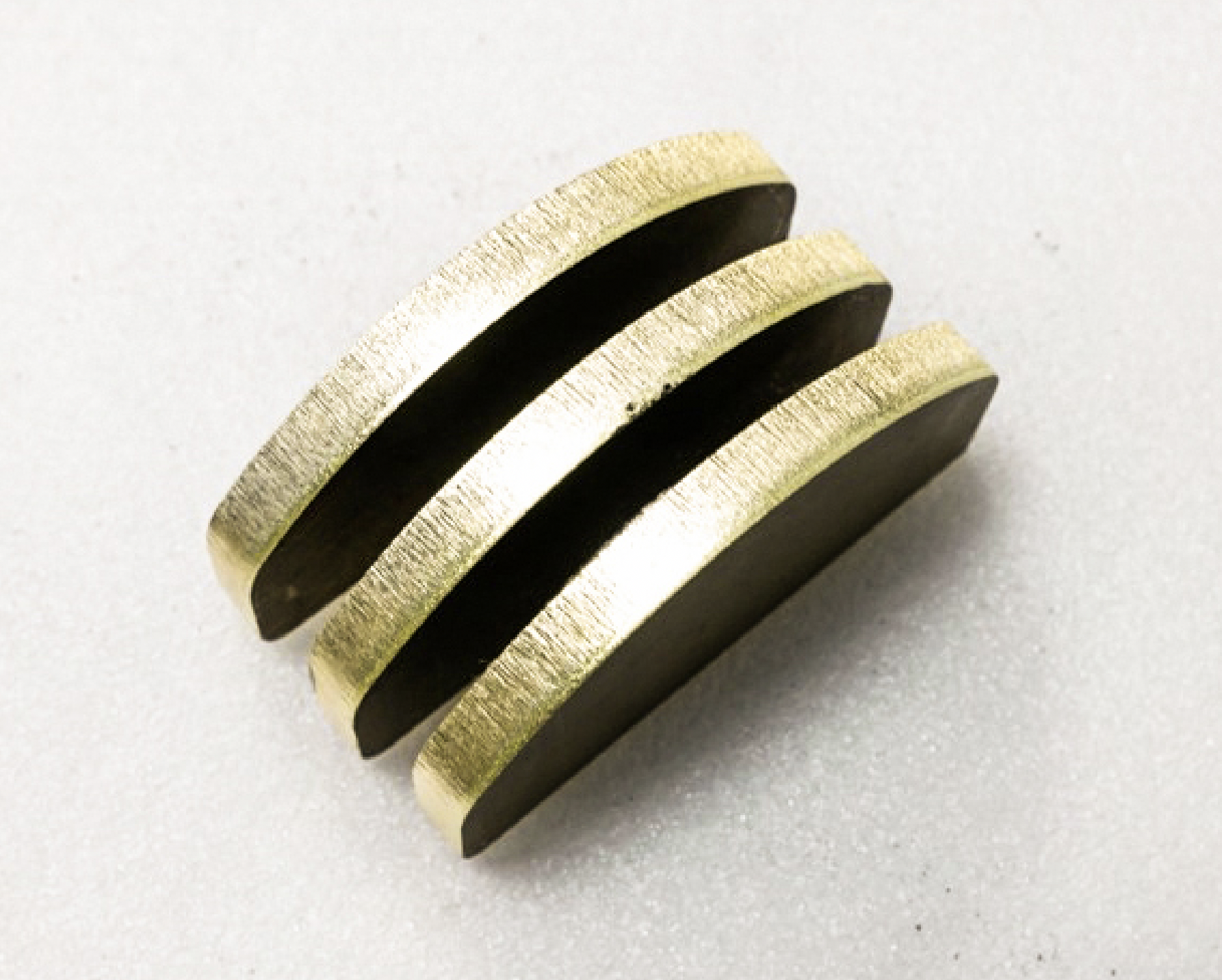

Application Examples
Product Comparison
Select products from the dropdown options below to compare parameters and find your perfect laser.
| Product type | |
| Series | |
| Nominal power | |
| Module | |
| Polarization | |
| Power Redundancy | |
| Power Tunability | |
| Wavelength | |
| Power Stability | |
| Modulation Frequency | |
| Pulse Energy (mJ) | |
| Repetition Rate (kHz) | |
| Fiber Connectors | |
| Certifications and Safety | |
| Cooling Method | |
| Housing form | |
| Warranty | |
Browse our Series
