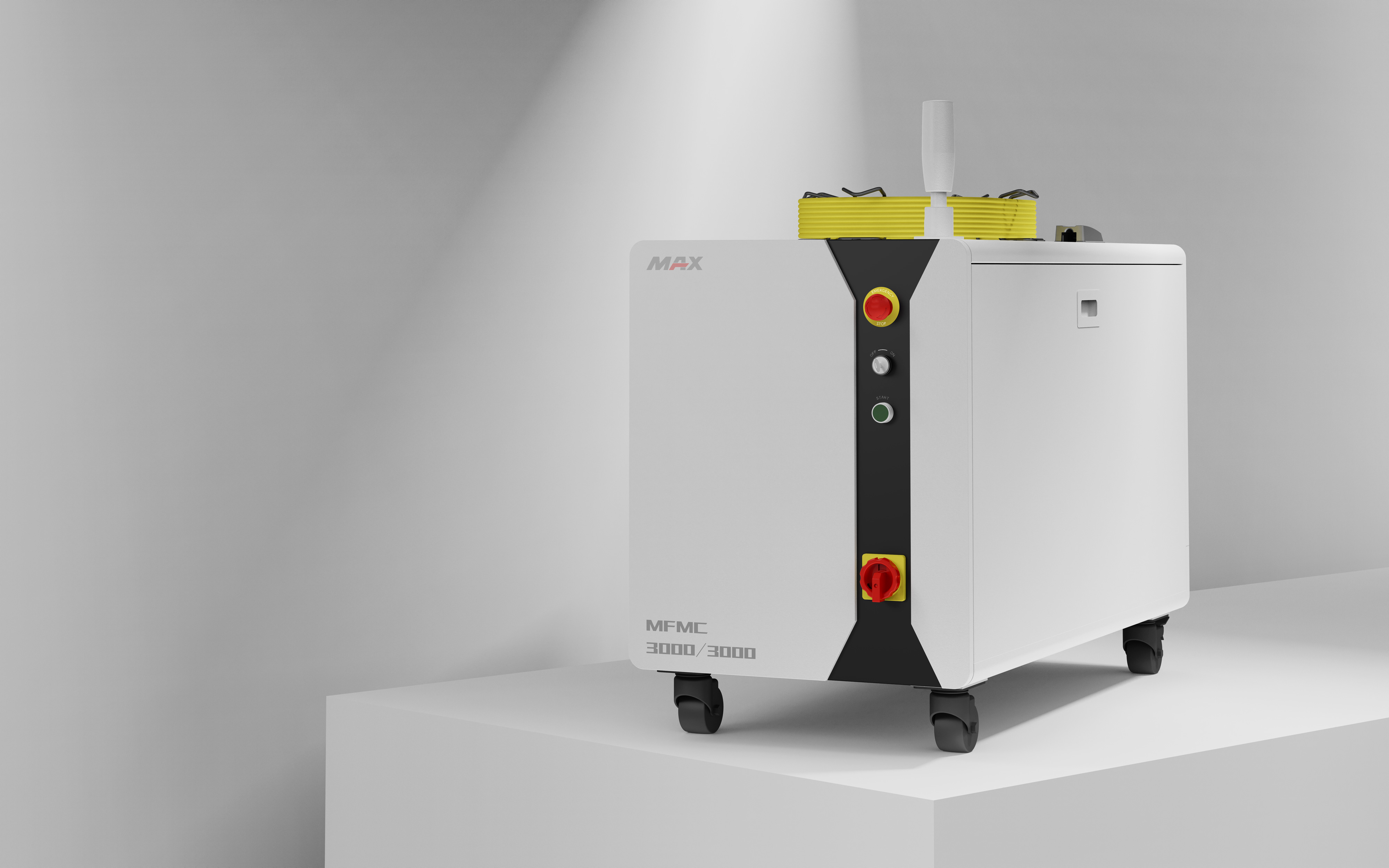

Dual Beam MFMC 3000/3000M
A 3kW core / 3kW ring water-cooled fiber laser delivering an even beam split for spatter-free EV battery welding.
Dual Beam MFMC 3000/3000M Industrial Fiber Laser
The MFMC 3000/3000M tops out the even-split trio, with an even 3000W core / 3000W ring split, for 6kW of combined output — the same total as the MFMC 4000/2000M, but split evenly rather than biased toward the core. Core beam quality ranges from 1.3mm·mrad (@34μm) to 4.0mm·mrad (@100μm) depending on fiber configuration, with ring beam quality of 4.5mm·mrad (@100μm) or 32mm·mrad (@600μm).
It's built for EV battery welding, including battery drive unit welding and battery tab welding. Output is tunable from 10% to 100% of rated power, with a modulation frequency up to 20kHz. It connects via QBH or QD fiber connectors, integrates into production lines over Digital I/O or ProfiNET, runs on water cooling (distilled water or glycol antifreeze, conductivity ≤40±5μS/cm), draws 18kW from a 360-440VAC three-phase supply, and ships CE certified with a 2-year standard warranty. At 550×1140×760mm and roughly 210kg, it shares its chassis with the rest of the Dual Beam Multi Module lineup.
Key Features
An even 1:1 split between a 3000W core beam and a 3000W ring beam, for deep penetration balanced with heat spread around the weld pool.
At 6kW combined core+ring power, the MFMC 3000/3000M matches the MFMC 4000/2000M's total output, but splits it evenly rather than biasing toward the core — a wider heat-spread profile for different weld requirements.
Built for battery drive unit welding and battery tab welding — precision joins where spatter and heat-affected zones need to stay minimal.
Connects into existing production lines over Digital I/O or ProfiNET, for integration with automated welding cells.
Water cooling (distilled water or glycol antifreeze, conductivity ≤40±5μS/cm) keeps output stable through sustained CW welding work on a fixed production line.
Core and ring beam quality can be configured across several fiber core diameters (34/100μm, 50/600μm, 100/300μm, or 100/600μm), for flexibility in matching the beam profile to the weld
