Elite MFMC 50000
A 50kW multi-module, cabinet-mounted fiber laser delivering ≥5% built-in power redundancy for cutting, welding, and cladding.

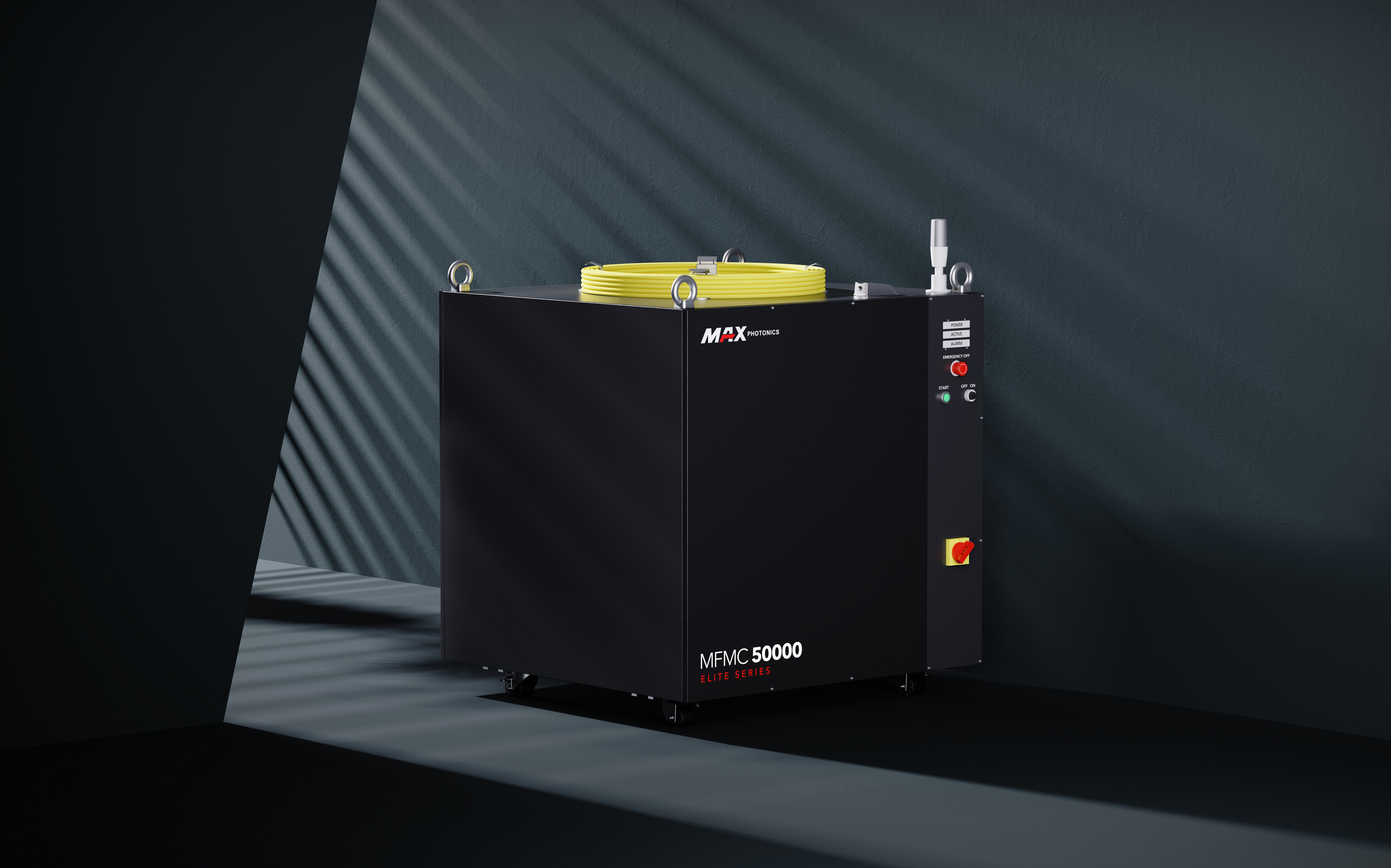

Elite MFMC 50000 Industrial Fiber Laser
The MFMC 50000 steps up to 50kW within the same multi-module cabinet architecture and beam quality range (BPP 4.0–5.5 mm·mrad @100μm) as the MFMC 40000, in a chassis built to house the extra module capacity — at roughly 936kg against the MFMC 40000's 857kg, for higher-throughput cutting, welding, and cladding work.
Like the MFMC 40000, power stability holds within ±1% over an hour of continuous running, with the same 10–100% power tunability and up to 5kHz modulation frequency. It connects over digital I/O, with EtherCAT and PROFINET available, and ships CE, FDA, and ETL certified, with safety systems rated to Performance Level D (PL-d) and a 3-year standard warranty, extendable to 5 years.
Key Features
The same BPP 4.0–5.5 mm·mrad (@100μm) beam quality as the MFMC 40000 carries through to 50kW, keeping output consistent as module count increases.
≥5% of rated power held in reserve across the module array means the MFMC 50000 keeps running at full output even if one module underperforms.
10–100% power tunability and modulation up to 5kHz give the MFMC 50000 the same controlled-output flexibility as the MFMC 40000.
Digital I/O, with EtherCAT and PROFINET available, integrates the MFMC 50000 into existing cutting, welding, and cladding lines without custom middleware.
The same multi-module cabinet design as the MFMC 40000 combines additional laser modules into one enclosure to reach 50kW.
Runs on a closed water-cooling loop across a +10°C to +40°C operating range, with humidity tolerance up to 85% for varied shop-floor conditions.

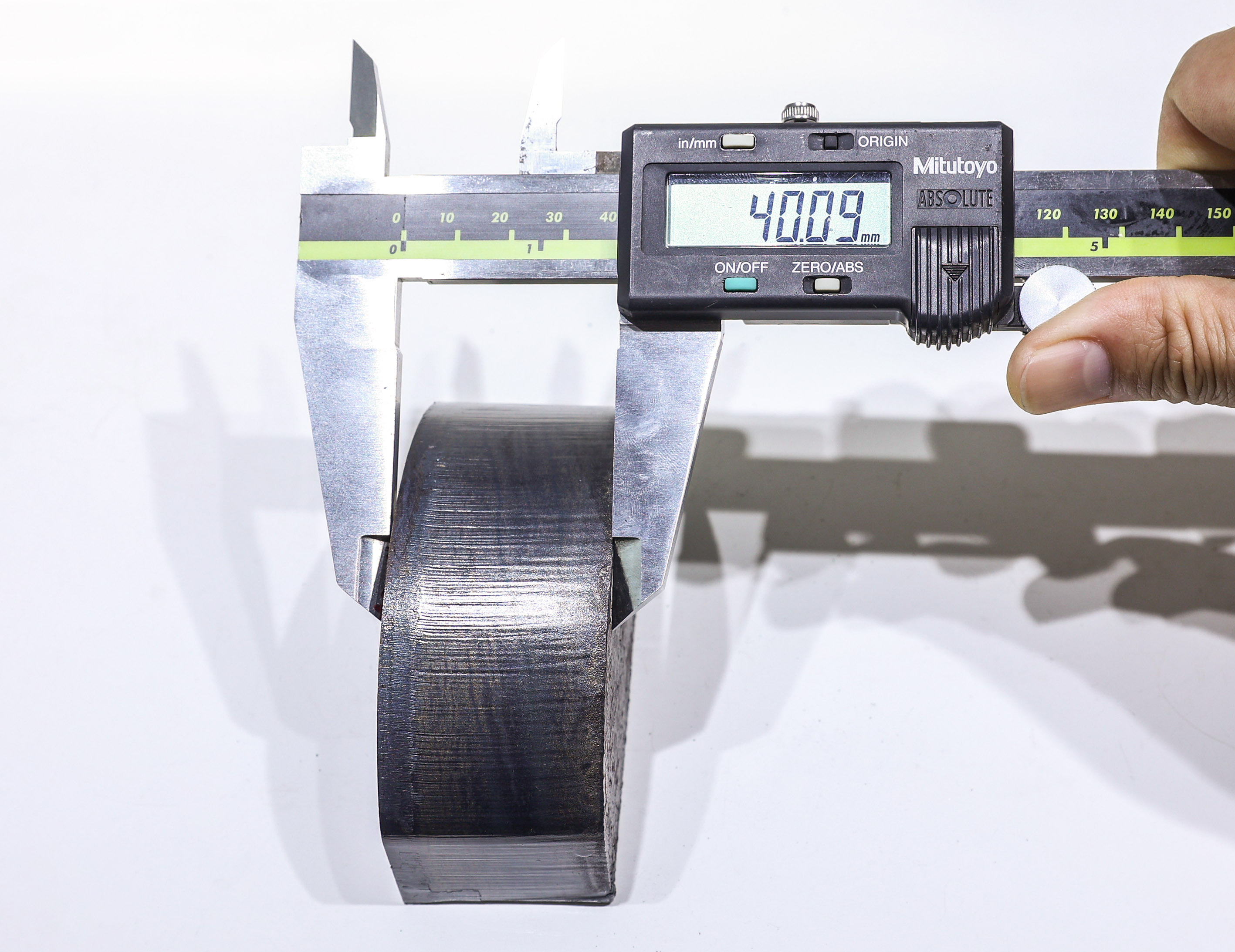

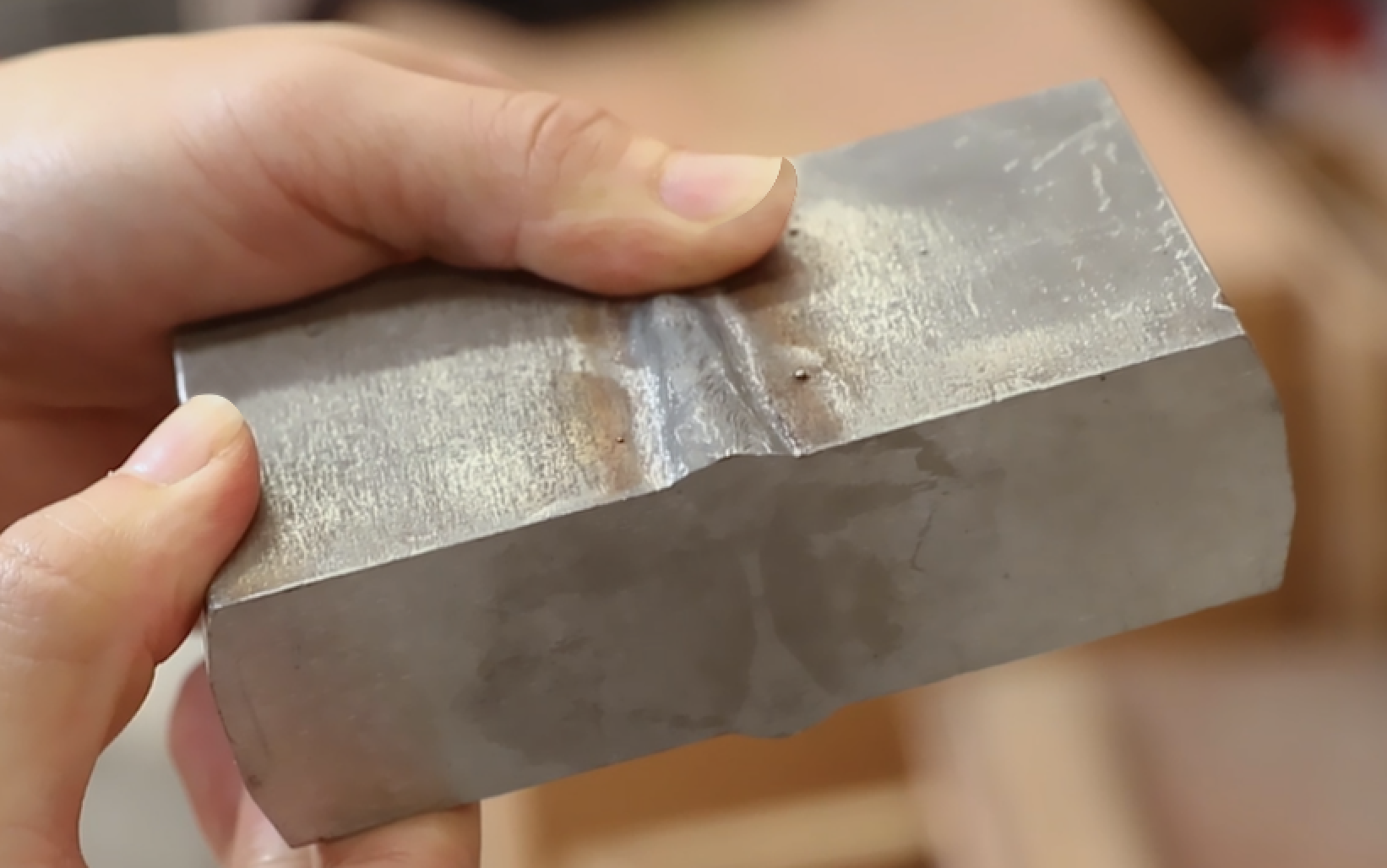

Application Examples
Product Comparison
Select products from the dropdown options below to compare parameters and find your perfect laser.
| Product type | |
| Series | |
| Nominal power | |
| Module | |
| Polarization | |
| Power Redundancy | |
| Power Tunability | |
| Wavelength | |
| Power Stability | |
| Modulation Frequency | |
| Pulse Energy (mJ) | |
| Repetition Rate (kHz) | |
| Fiber Connectors | |
| Certifications and Safety | |
| Cooling Method | |
| Housing form | |
| Warranty | |
