M Series MFMC 30000M
A 30kW multi-module fiber laser delivering BPP 3.2–4.2 mm·mrad beam quality, CE-certified for cutting and welding.

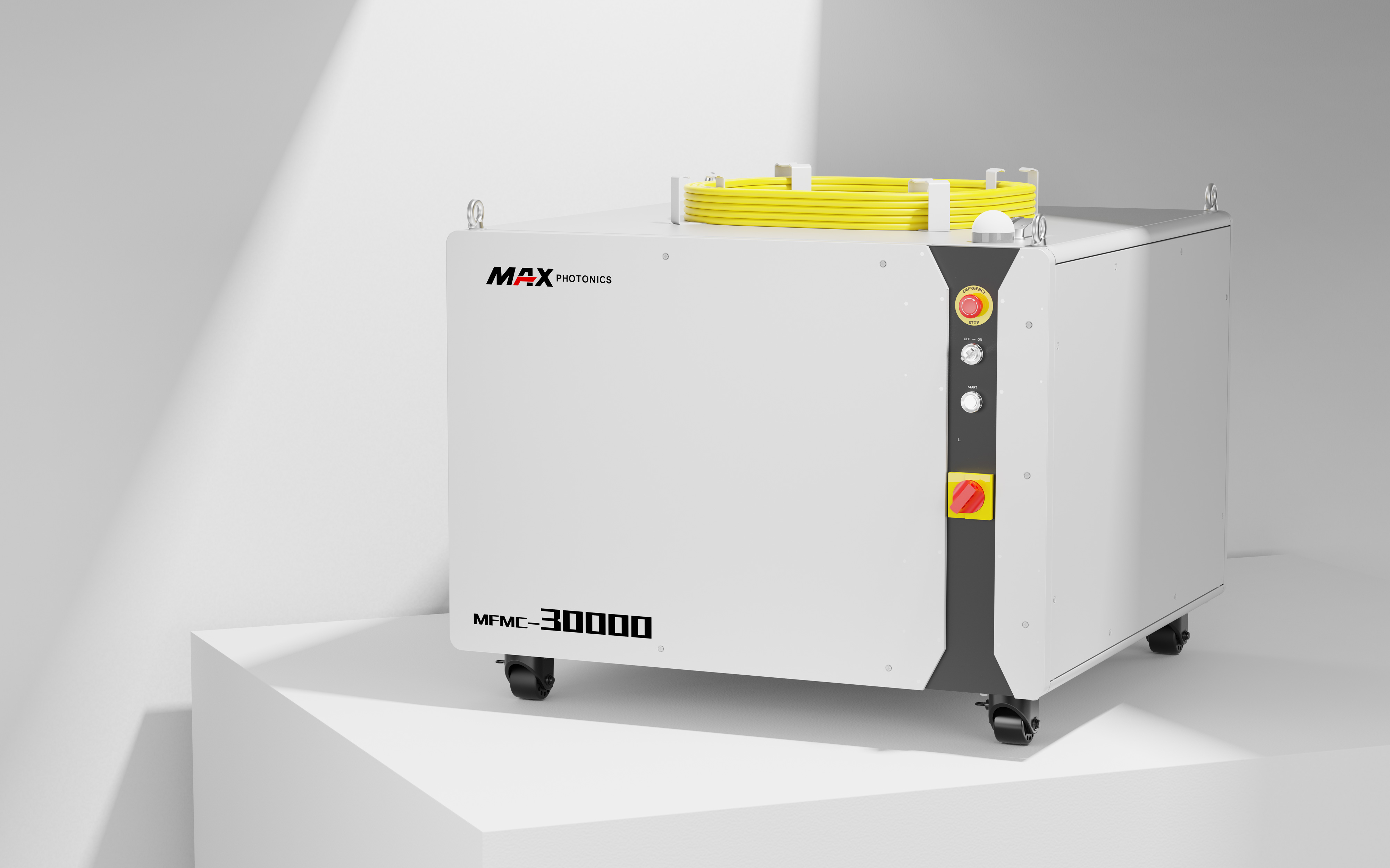

M Series MFMC 30000 Industrial Fiber Laser
The MFMC 30000M steps up to 30kW within the same multi-module cabinet architecture and beam quality range (BPP 3.2–4.2 mm·mrad @100μm) as the MFMC 20000M, in a larger chassis built to house the additional module capacity for higher-throughput cutting and welding work.
Like the MFMC 20000M, power stability holds within ±1% over an hour of continuous running, with the same 10–100% power tunability. It connects over digital I/O, draws power from a 400V three-phase supply, and ships CE-certified with a 3-year standard warranty.
Key Features
The same BPP 3.2–4.2 mm·mrad (@100μm) beam quality as the MFMC 20000M carries through to 30kW, keeping output consistent as module count increases.
Output is adjustable from 10% to 100% of rated power, with modulation up to 5kHz, giving the MFMC 30000M the same controlled-output flexibility as the MFMC 20000M.
Power output holds within ±1% over an hour of continuous running, keeping cutting and welding results consistent across a full shift.
Digital I/O connectivity drops the MFMC 30000M into existing cutting and welding cells without custom middleware.
The same multi-module cabinet design as the MFMC 20000M combines additional laser modules into one enclosure to reach 30kW.
At 1120 × 1100 × 750mm and roughly 470kg — 90kg heavier than the MFMC 20000M — the MFMC 30000M's chassis is built to house the additional module capacity.
Application Examples
