M Series MFMC 50000M
A 50kW multi-module fiber laser delivering BPP 4.0–5.5 mm·mrad beam quality, CE-certified for cutting and welding.

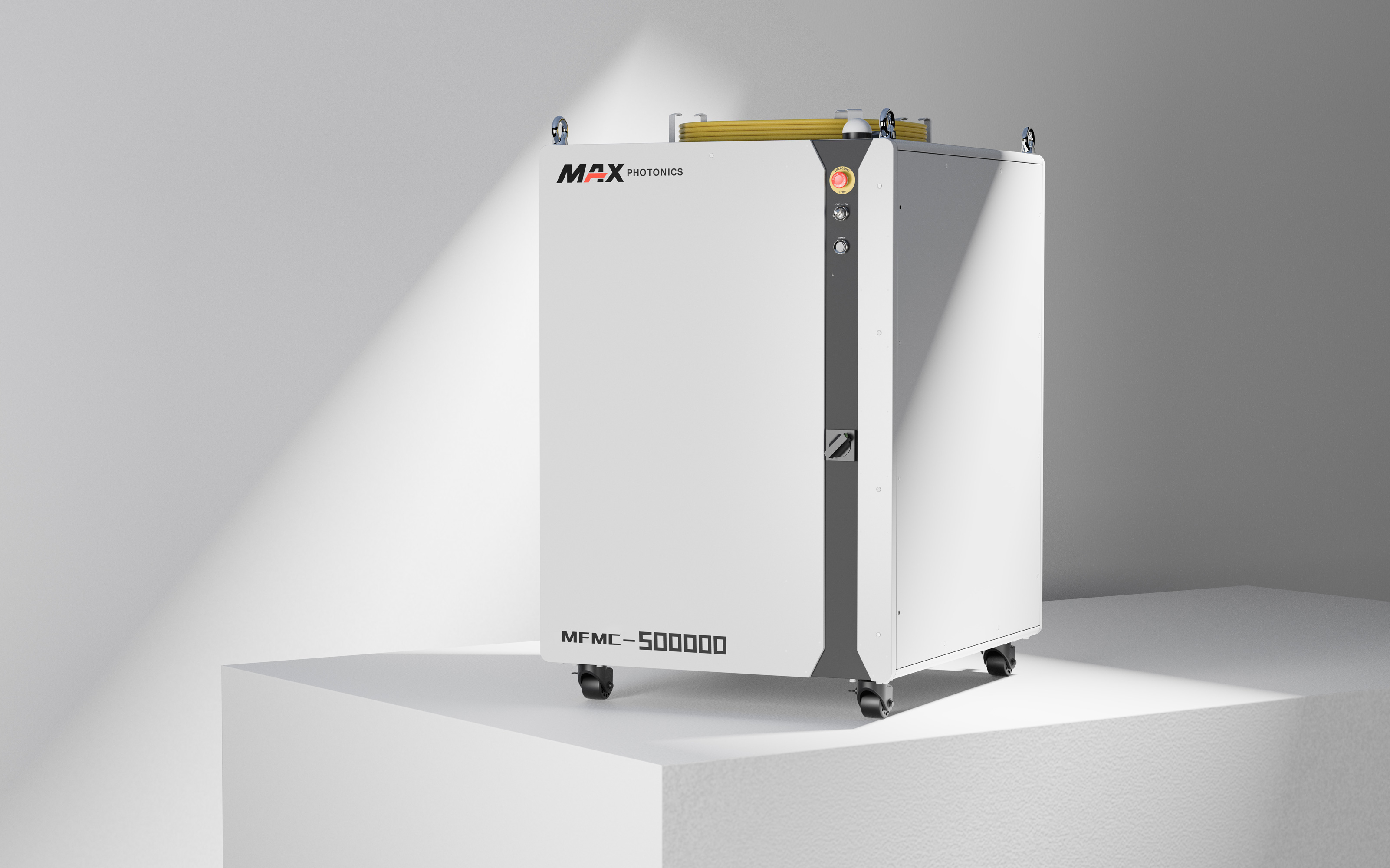

M Series MFMC 50000 Industrial Fiber Laser
The MFMC 50000M steps up to 50kW within the same multi-module cabinet architecture, beam quality range (BPP 4.0–5.5 mm·mrad @100μm), and 950 × 1101 × 1250mm footprint as the MFMC 40000M, in a heavier chassis built to house the additional module capacity for higher-throughput cutting and welding work.
Like the MFMC 40000M, power stability holds within ±1% over an hour of continuous running, with the same 10–100% power tunability and CW or modulated operating modes. It connects over digital I/O, draws power from a 400V three-phase supply, and ships CE-certified with a 3-year standard warranty.
Key Features
The same BPP 4.0–5.5 mm·mrad (@100μm) beam quality as the MFMC 40000M carries through to 50kW, keeping output consistent as module count increases.
Runs in continuous-wave or modulated mode, giving flexibility to match output delivery to the cutting or welding process at hand.
Output is adjustable from 10% to 100% of rated power, with modulation up to 5kHz, giving the MFMC 50000M the same controlled-output flexibility as the MFMC 40000M.
Digital I/O connectivity drops the MFMC 50000M into existing cutting and welding cells without custom middleware.
The same multi-module cabinet design as the MFMC 40000M combines additional laser modules into one enclosure to reach 50kW.
At 950 × 1101 × 1250mm — identical to the MFMC 40000M — and roughly 936kg, the MFMC 50000M delivers more power without a larger footprint on the shop floor.
Application Examples
Product Comparison
Select products from the dropdown options below to compare parameters and find your perfect laser.
| Product type | |
| Series | |
| Nominal power | |
| Module | |
| Polarization | |
| Power Redundancy | |
| Power Tunability | |
| Wavelength | |
| Power Stability | |
| Modulation Frequency | |
| Pulse Energy (mJ) | |
| Repetition Rate (kHz) | |
| Fiber Connectors | |
| Certifications and Safety | |
| Cooling Method | |
| Housing form | |
| Warranty | |
