M Series MFMC 85000M
An 85kW multi-module fiber laser delivering BPP 5.5–6.6 mm·mrad beam quality, CE-certified for cutting and welding.
M Series MFMC 85000 Industrial Fiber Laser
The MFMC 85000M tops out the M Series at 85kW — the highest power rating in the lineup — while sharing the same 1100 × 2185 × 1610mm chassis, 1900kg weight, and beam quality (BPP 5.5–6.6 mm·mrad @150μm) as the MFMC 80000M, for the series' highest-throughput cutting and welding work.
Like the MFMC 80000M, power stability holds within ±1% over an hour of continuous running, with the same 10–100% power tunability. It connects over digital I/O, draws up to 280kW from a 400V three-phase supply, and ships CE-certified with a 3-year standard warranty.
Key Features
The same BPP 5.5–6.6 mm·mrad (@150μm) beam quality shared with the MFMC 80000M carries through to the M Series' highest power rating.
Runs in continuous-wave or modulated mode, giving flexibility to match output delivery to the cutting or welding process at hand.
Output is adjustable from 10% to 100% of rated power, with modulation up to 5kHz, giving the MFMC 85000M the same controlled-output flexibility as the MFMC 80000M.
Digital I/O connectivity drops the MFMC 85000M into existing cutting and welding cells without custom middleware.
The same multi-module cabinet design as the MFMC 80000M delivers the M Series' highest output in the same 1100 × 2185 × 1610mm footprint.
At 85kW and roughly 1900kg — the same weight and footprint as the MFMC 80000M — the MFMC 85000M is the highest-output model in the M Series lineup.

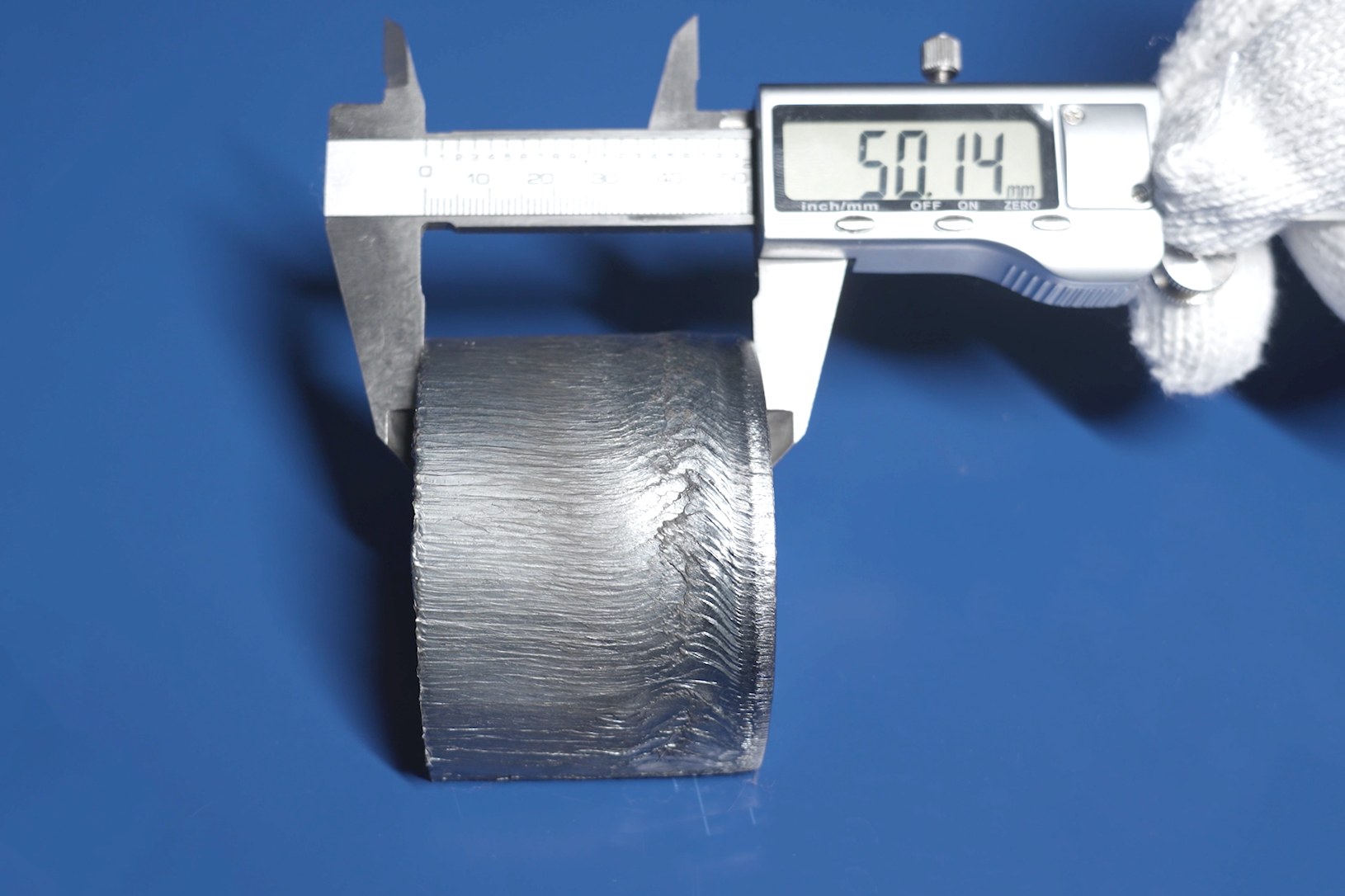

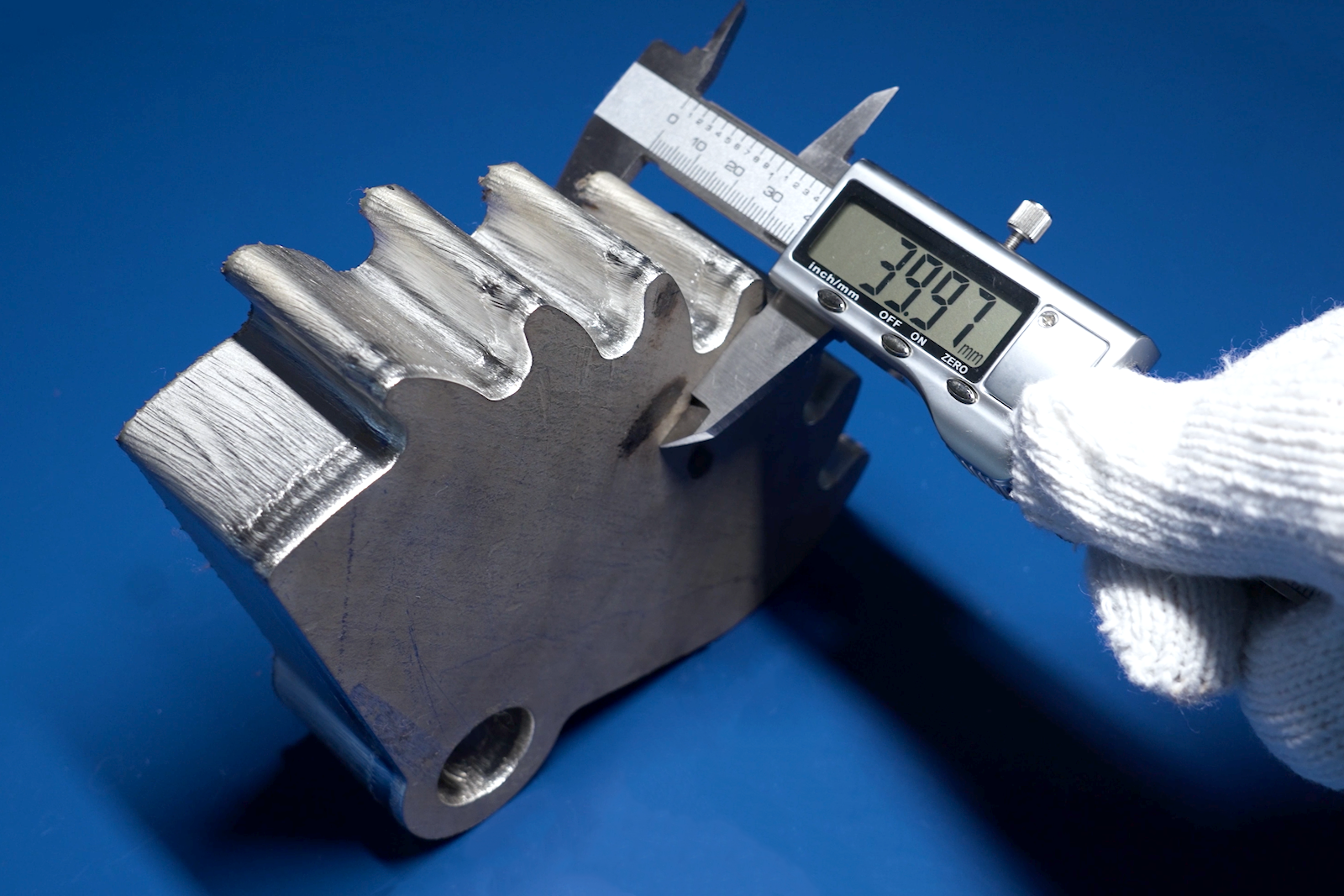

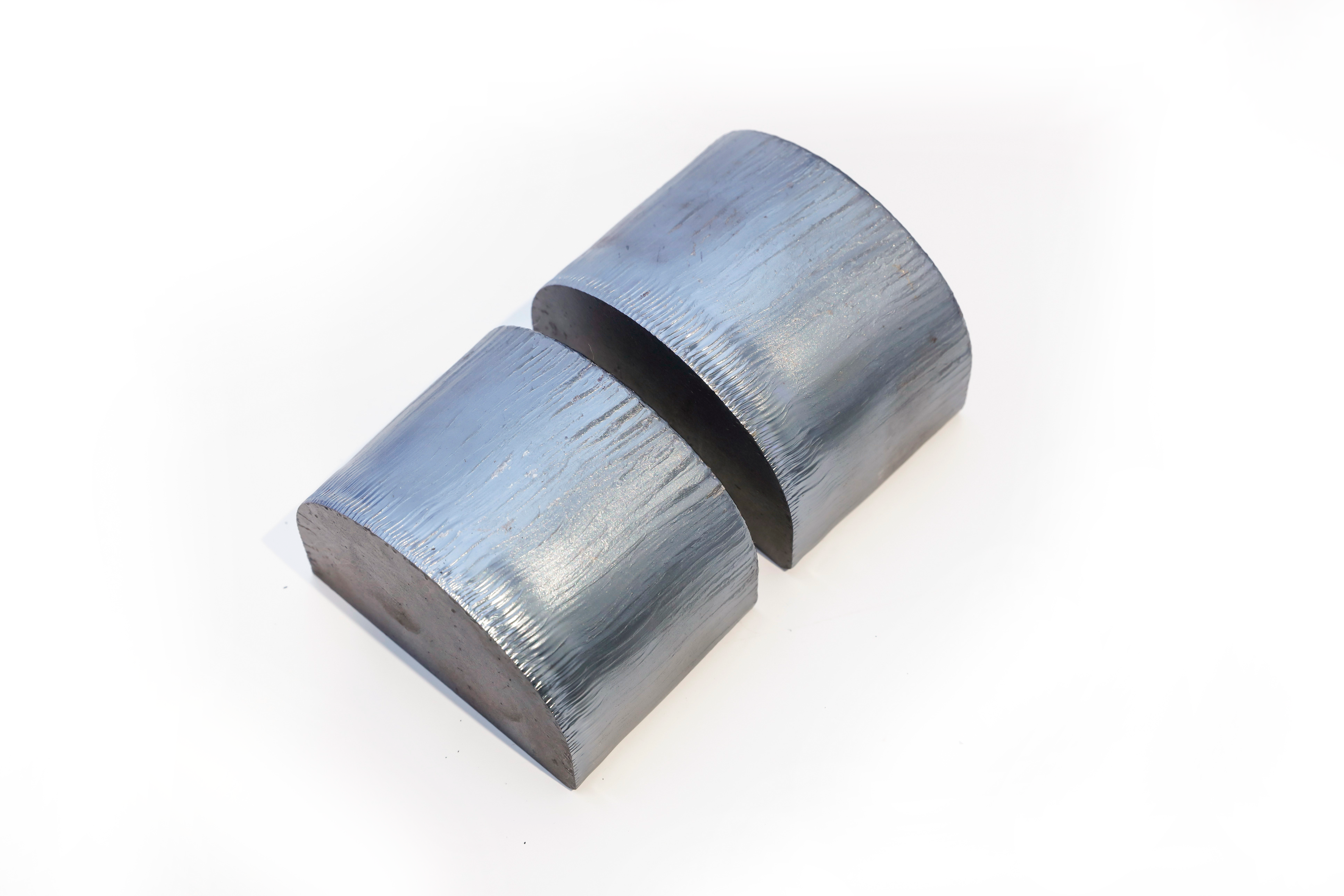

Application Examples
Product Comparison
Select products from the dropdown options below to compare parameters and find your perfect laser.
| Product type | |
| Series | |
| Nominal power | |
| Module | |
| Polarization | |
| Power Redundancy | |
| Power Tunability | |
| Wavelength | |
| Power Stability | |
| Modulation Frequency | |
| Pulse Energy (mJ) | |
| Repetition Rate (kHz) | |
| Fiber Connectors | |
| Certifications and Safety | |
| Cooling Method | |
| Housing form | |
| Warranty | |
