MOPA MFPT 100M
A 100W, CE-certified miniaturized pulsed fiber laser delivering M² ≤1.4 beam quality for marking, engraving, and micro-welding.

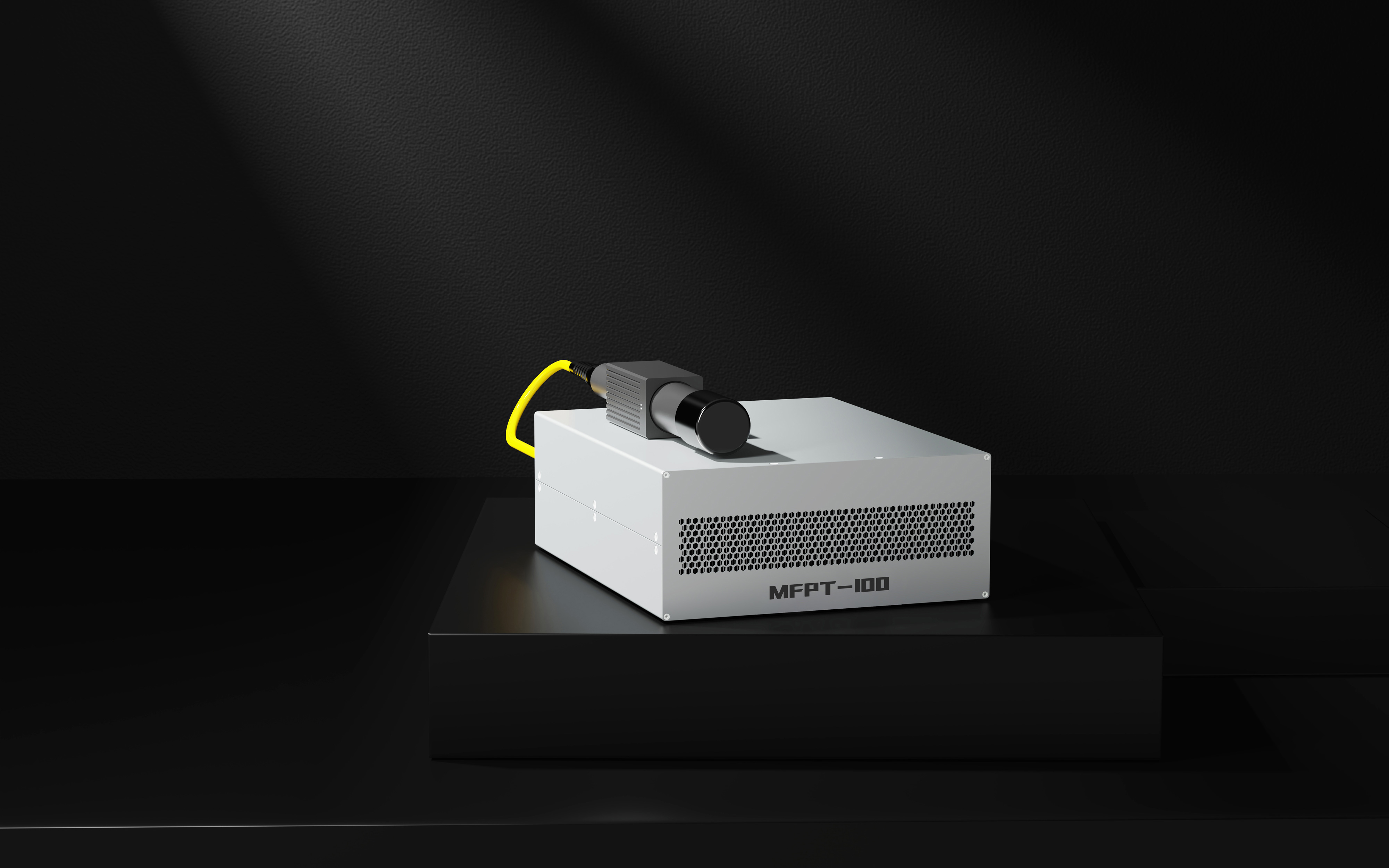

MOPA MFPT 100M Pulsed Fiber Laser
The MFPT 100M tops out this pair at 100W, sharing the same beam quality (M² ≤1.4), 290 × 235 × 100mm chassis, and 1 to 8000kHz repetition rate range as the MFPT 70M, with a higher single pulse energy of 1.8mJ for marking, engraving, and low-heat micro-welding work that needs more energy per pulse.
Like the MFPT 70M, tunable heat input lets it switch between surface marking, micro-cutting, and low-spatter welding without changing hardware, with output adjustable from 10% to 100% of rated power. It offers a choice of fixed isolator or QCS quick-connect fiber output, runs on air cooling, draws 480W from a 24VDC supply — more than the MFPT 70M's 360W — and ships CE-certified with a 2-year standard warranty, extendable up to 5 years.
Key Features
A single pulse energy of 1.8mJ — higher than the MFPT 70M's 1.1mJ — delivers more energy per pulse for denser marks, deeper engraving, or harder materials.
Adjustable from 1 to 8000kHz, the same wide range as the MFPT 70M, for fine control across marking, micro-cutting, and welding work.
Tunable heat input lets the MFPT 100M switch between surface marking, micro-cutting, and low-spatter welding without swapping hardware.
Available with a fixed isolator output or a QCS quick-connect output, for flexibility in how the laser integrates into a production line.
Runs on air cooling rather than a closed water loop, simplifying installation for bench-top, mobile, or OEM integration.
At roughly 6.5kg — shared with the MFPT 70M — the MFPT 100M is the higher-power model of the two, at 100W against the MFPT 70M's 70W.
Application Examples
Product Comparison
Select products from the dropdown options below to compare parameters and find your perfect laser.
| Product type | |
| Series | |
| Nominal power | |
| Module | |
| Polarization | |
| Power Redundancy | |
| Power Tunability | |
| Wavelength | |
| Power Stability | |
| Modulation Frequency | |
| Pulse Energy (mJ) | |
| Repetition Rate (kHz) | |
| Fiber Connectors | |
| Certifications and Safety | |
| Cooling Method | |
| Housing form | |
| Warranty | |
