MOPA MFPT 70M
A 70W, CE-certified miniaturized pulsed fiber laser delivering M² ≤1.4 beam quality for marking, engraving, and micro-welding.

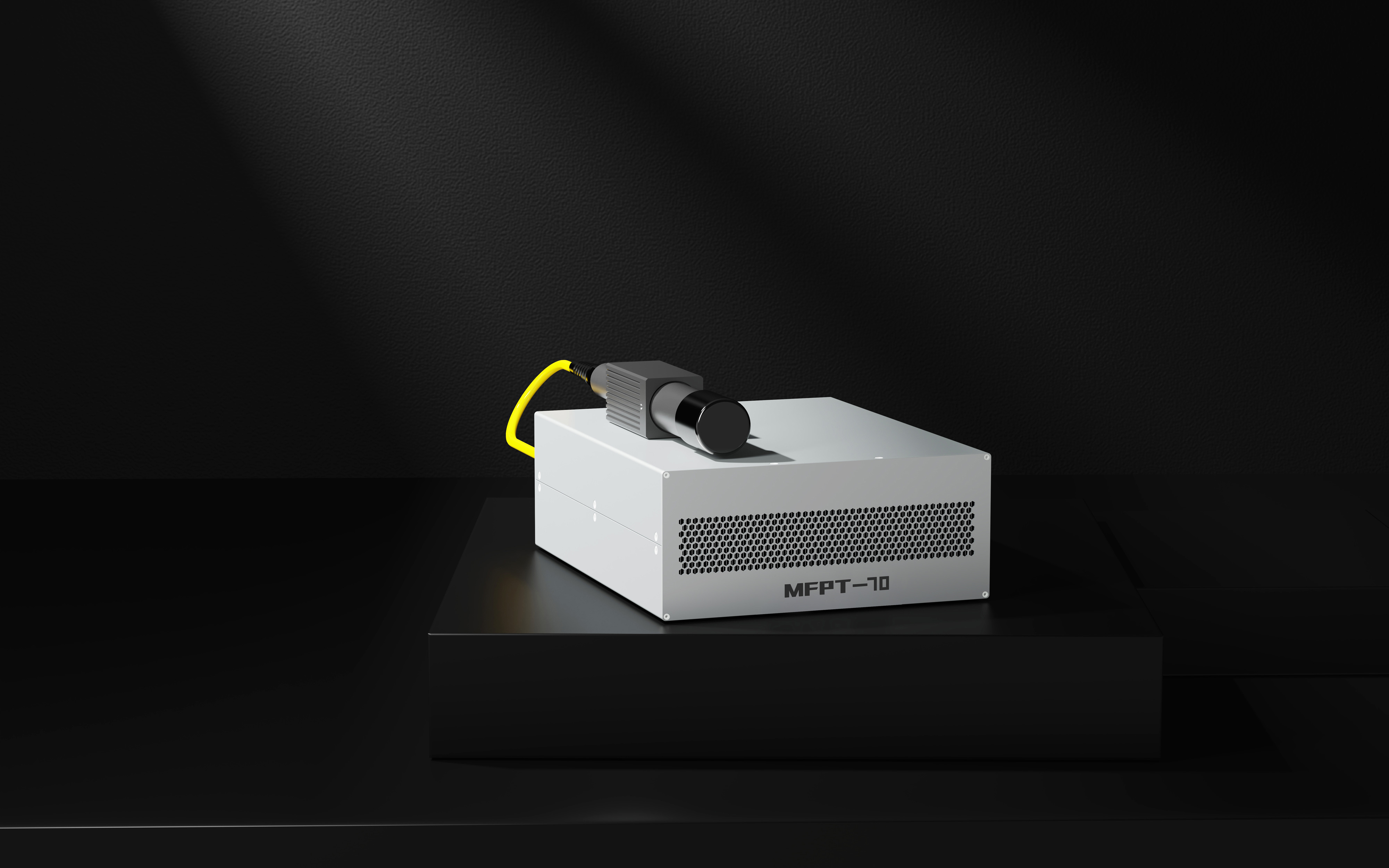

MOPA MFPT 70M Pulsed Fiber Laser
The MFPT 70M steps up from the MFPT 20M/30M/50M/60M group into a larger miniaturized chassis, built for marking, engraving, and low-heat micro-welding. At 70W, it runs in CW or pulsed operating modes with beam quality of M² ≤1.4 and a wider repetition rate range of 1 to 8000kHz — double the smaller group's 4000kHz ceiling — for finer control across the wider range of processes this tier supports.
Output is tunable from 10% to 100% of rated power, with single pulse energy of 1.1mJ for switching between surface marking, micro-cutting, and low-spatter welding without changing hardware. It offers a choice of fiber output — a fixed isolator or a QCS quick-connect — runs on air cooling, drawing 360W from a 24VDC supply, and ships CE-certified with a 2-year standard warranty, extendable up to 5 years.
Key Features
A beam quality of M² ≤1.4 keeps the focused spot fine and consistent, for legible marks and clean engraved detail.
A wider repetition rate range than the MFPT 20M/30M/50M/60M group, adjustable from 1 to 8000kHz, for finer control across marking, micro-cutting, and welding work.
Tunable heat input lets the MFPT 70M switch between surface marking, micro-cutting, and low-spatter welding without swapping hardware.
Available with a fixed isolator output or a QCS quick-connect output, for flexibility in how the laser integrates into a production line.
Runs on air cooling rather than a closed water loop, simplifying installation for bench-top, mobile, or OEM integration.
At 290 × 235 × 100mm and roughly 6.5kg, the MFPT 70M steps up to a larger miniaturized chassis than the MFPT 20M/30M/50M/60M group, shared with the MFPT 100M.
Application Examples
Product Comparison
Select products from the dropdown options below to compare parameters and find your perfect laser.
| Product type | |
| Series | |
| Nominal power | |
| Module | |
| Polarization | |
| Power Redundancy | |
| Power Tunability | |
| Wavelength | |
| Power Stability | |
| Modulation Frequency | |
| Pulse Energy (mJ) | |
| Repetition Rate (kHz) | |
| Fiber Connectors | |
| Certifications and Safety | |
| Cooling Method | |
| Housing form | |
| Warranty | |
