X Series MFSC 4000X
A 4kW single-module fiber laser delivering BPP ≤1.8 mm·mrad beam quality, CE-certified for cutting and welding.

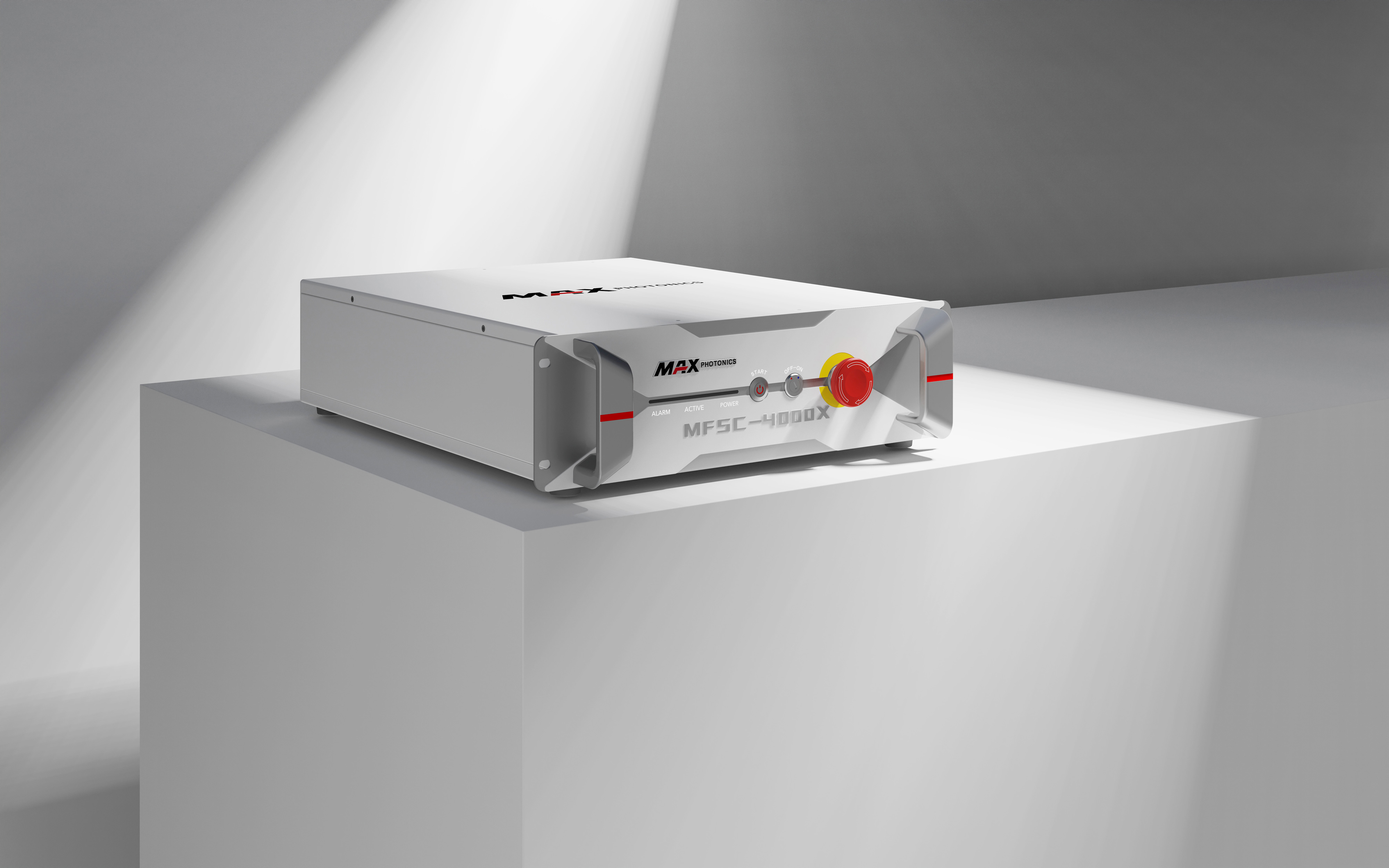

X Series MFSC 4000X Industrial Fiber Laser
The MFSC 4000X carries the same rack-mounted single-module architecture and beam quality (BPP ≤1.8 mm·mrad @50μm) as the MFSC 3000X, in a heavier 80kg chassis built to house the additional power for higher-throughput carbon steel and stainless steel cutting.
Like the MFSC 3000X, output is tunable from 10% to 100% of rated power, with CW or modulated operating modes. It connects over digital I/O, draws power from a 360–440VAC three-phase supply, and ships CE-certified with a 2-year standard warranty.
Key Features
The same BPP ≤1.8 mm·mrad (@50μm) beam quality as the MFSC 3000X carries through at 4kW, keeping focus and edge quality steady as output steps up.
Runs in continuous-wave or modulated mode, giving flexibility to match output delivery to the cutting or welding process at hand.
Output is adjustable from 10% to 100% of rated power, with modulation up to 5kHz, for dialing in exactly the energy a given material calls for.
Digital I/O connectivity drops the MFSC 4000X into existing cutting and welding cells without custom middleware.
Runs on a closed water-cooling loop across a +10°C to +40°C operating range, with humidity tolerance up to 85% for varied shop-floor conditions.
At 482.6 × 850 × 113mm and roughly 80kg — 20kg heavier than the MFSC 3000X — the MFSC 4000X's chassis is built to house the additional power at the same footprint.
Application Examples
Product Comparison
Select products from the dropdown options below to compare parameters and find your perfect laser.
| Product type | |
| Series | |
| Nominal power | |
| Module | |
| Polarization | |
| Power Redundancy | |
| Power Tunability | |
| Wavelength | |
| Power Stability | |
| Modulation Frequency | |
| Pulse Energy (mJ) | |
| Repetition Rate (kHz) | |
| Fiber Connectors | |
| Certifications and Safety | |
| Cooling Method | |
| Housing form | |
| Warranty | |
