Elite MFMC 60000
A 60kW multi-module, cabinet-mounted fiber laser delivering ≥5% built-in power redundancy for cutting, welding, and cladding.

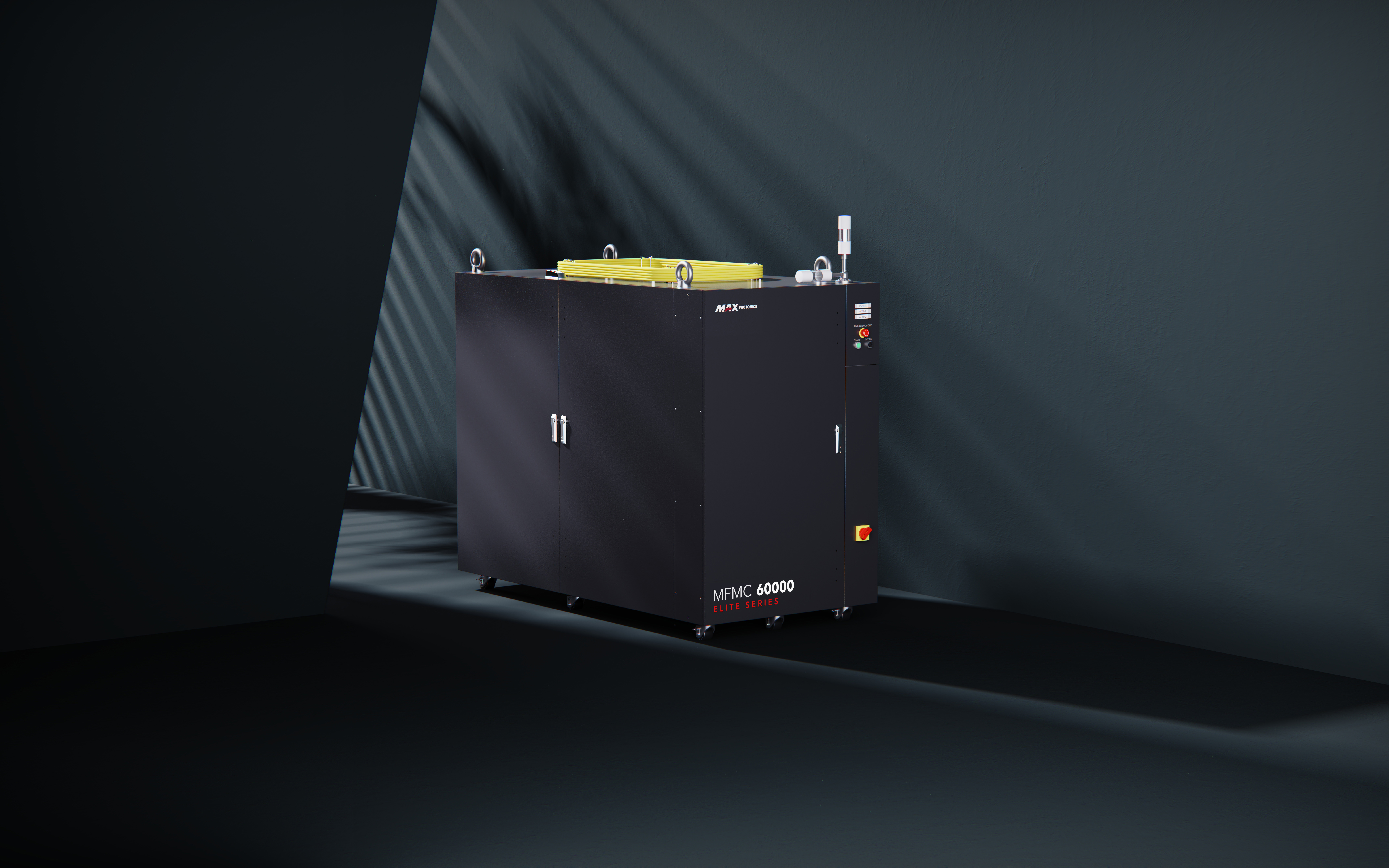

Elite MFMC 60000 Industrial Fiber Laser
The MFMC 60000 is the entry point into Elite's top multi-module tier, combining multiple laser modules into a single 60kW output for the highest-throughput cutting, welding, and cladding work in the range. At 1690kg, it's the lightest of the three highest-power Elite lasers, sharing the same beam quality (BPP 5.5–6.5 mm·mrad @150μm) as the MFMC 80000 and MFMC 85000.
Power stability holds within ±1% over an hour of continuous running, with tunability from 10% to 100% of rated output and modulation up to 5kHz for processes that call for controlled output. It connects over digital I/O, with EtherCAT and PROFINET available, and ships CE and FDA certified, with safety systems rated to Performance Level D (PL-d) and a 3-year standard warranty, extendable to 5 years.
Key Features
BPP of 5.5–6.5 mm·mrad at a 150μm core keeps output stable across cutting, welding, and cladding work at the top of the Elite range.
If one module underperforms, the rest of the array keeps the MFMC 60000 running at full rated output instead of forcing an unplanned shutdown.
Output is tunable from 10% to 100% of rated power, with modulation up to 5kHz, for processes that need controlled, lower-power passes as well as full-power runs.
Digital I/O, with EtherCAT and PROFINET available, connects the MFMC 60000 into existing production cells without custom middleware.
Multiple laser modules are combined into a single cabinet enclosure, giving the redundancy and headroom of a multi-module design in one integrated unit.
At 1100 × 2185 × 1610mm and roughly 1690kg, the MFMC 60000 is lighter than the MFMC 80000 and MFMC 85000, while sharing the same beam quality and cabinet architecture.
Application Examples
Product Comparison
Select products from the dropdown options below to compare parameters and find your perfect laser.
| Product type | |
| Series | |
| Nominal power | |
| Module | |
| Polarization | |
| Power Redundancy | |
| Power Tunability | |
| Wavelength | |
| Power Stability | |
| Modulation Frequency | |
| Pulse Energy (mJ) | |
| Repetition Rate (kHz) | |
| Fiber Connectors | |
| Certifications and Safety | |
| Cooling Method | |
| Housing form | |
| Warranty | |
