M Series MFMC 60000M
A 60kW multi-module fiber laser delivering BPP 5.2–6.2 mm·mrad beam quality, CE-certified for cutting and welding.

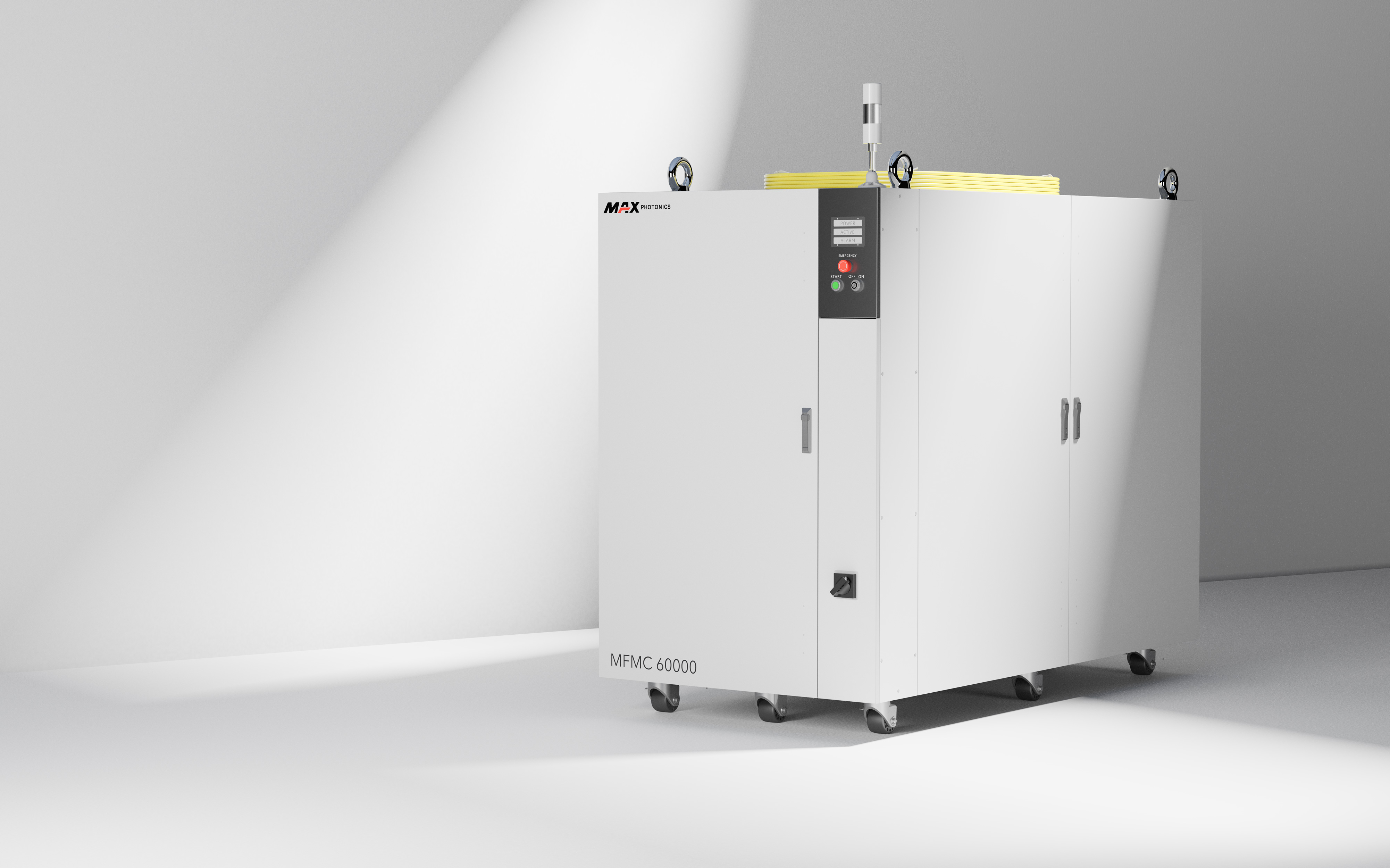

M Series MFMC 60000 Industrial Fiber Laser
The MFMC 60000M sits between the M Series' 40/50kW and 80/85kW multi-module pairs, combining multiple laser modules into a single 60kW output for cutting and welding work. It runs in CW or modulated operating modes, with beam quality of BPP 5.2–6.2 mm·mrad through a 150μm fiber core — a wider core than the smaller multi-module pairs use, built to carry the additional power.
Output is tunable from 10% to 100% of rated power, with power stability holding within ±1% over an hour of continuous running. It connects over digital I/O, draws up to 200kW from a 400V three-phase supply, and ships CE-certified with a 3-year standard warranty.
Key Features
A beam parameter product of 5.2–6.2 mm·mrad through a 150μm fiber core keeps output consistent for higher-throughput cutting and welding work at 60kW.
Runs in continuous-wave or modulated mode, giving flexibility to match output delivery to the cutting or welding process at hand.
Output is adjustable from 10% to 100% of rated power, with modulation up to 5kHz, for dialing in exactly the energy a given material or joint calls for.
Digital I/O connectivity drops the MFMC 60000M into existing cutting and welding cells without custom middleware.
Multiple laser modules are combined into a single cabinet enclosure, giving the MFMC 60000M its 60kW output in one integrated unit.
At 1100 × 2185 × 1610mm and roughly 1690kg, the MFMC 60000M's chassis is sized to house the module count needed to reach 60kW.

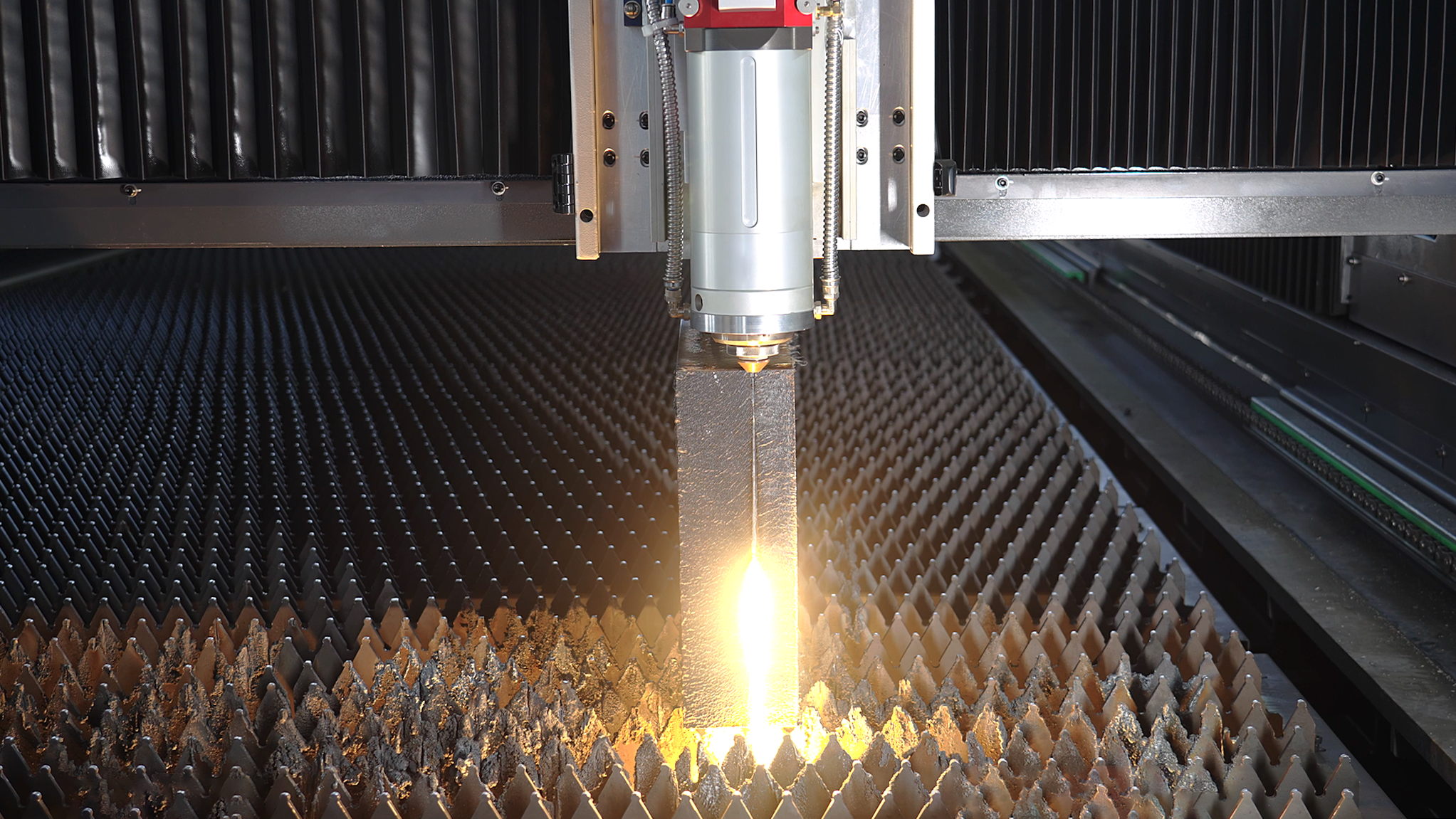

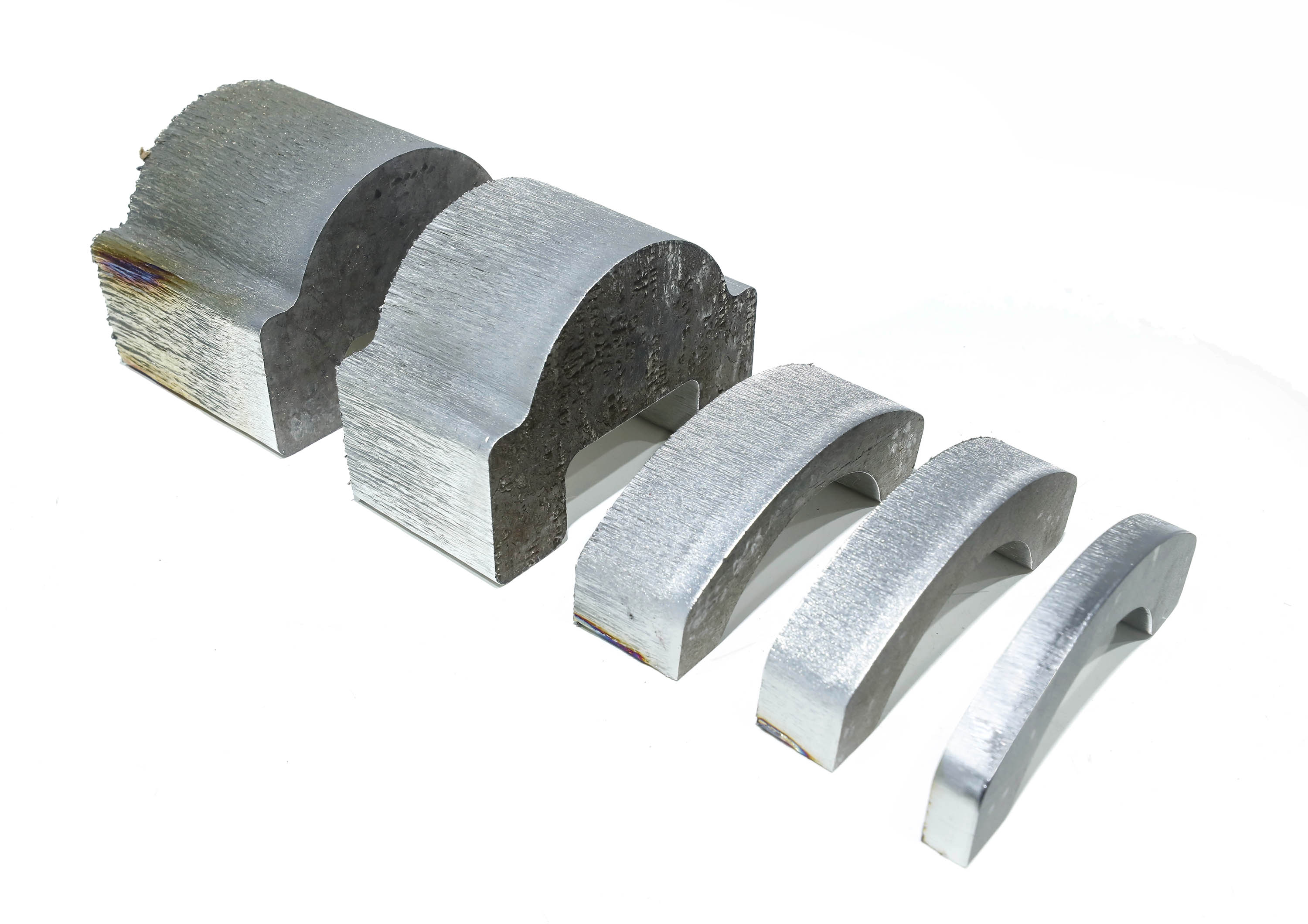

Application Examples
